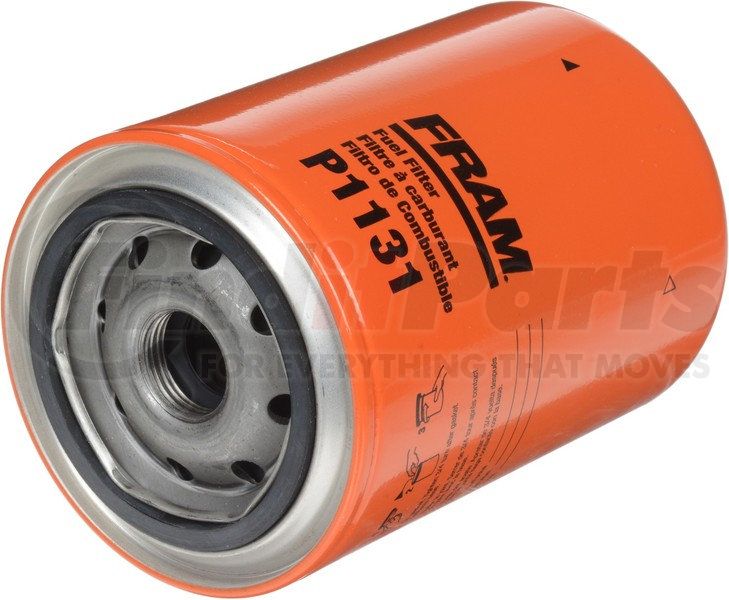

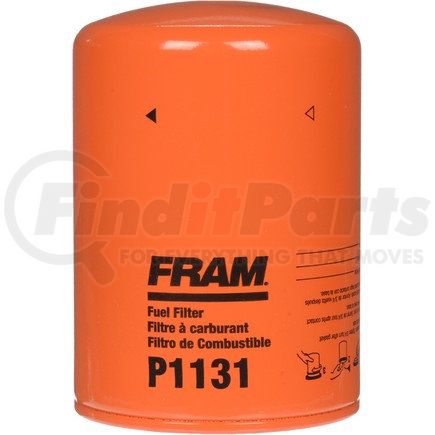

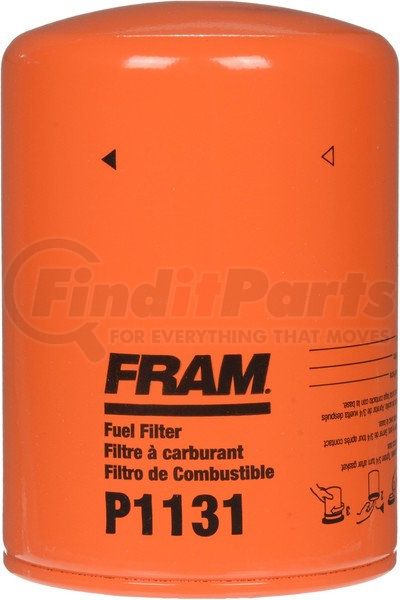

(888) 312-8812 Login SignupFRAM P1131 Secondary Spin-on Fuel Filter
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM P1131 Part Description
FRAM P1131 Specifications
Product Attributes
| Fuel Type | Diesel |
| Height | 5.374 IN |
| Gasket Or Seal Included | Yes |
| Inlet Type | Threaded |
| Primary Or Secondary | Secondary |
| Mounting Type | Spin On |
| Drain Plug Included | No |
| Filter Type | Spin-On Canister |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Material | Nitrile Rubber |
| Gasket Outside Diameter | 2.810 IN |
| Gasket Thickness | 0.203 IN |
| Gasket Type | Base |
| Grade Type | Regular |
| Housing Color | Orange |
| Inside Thread Diameter | 7/8-14 IN |
| New Or Remanufactured | New |
| Non Slip Grip | No |
| Outside Diameter | 3.690 IN |
| Reusable | No |
| Thread Size | Standard |
| Torque Nut | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 7/8-14 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100401014 |
| UNSPSC | 40161513 |
FRAM P1131 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | TP1125 |
| ACDelco | TP1125 |
| ALLIANCE | ABP/N10G-FF204 |
| Alliance Parts | ABP/N10G-FF204 |
| BALDWIN | BF992, BK6800, BK6802, BK6806 |
| BIG A | 95368 |
| CARQUEST | 86368 |
| CO-OP | PM-477 |
| Crosland | 9332 |
| Donaldson | FFP553693, P168056, P553693, P559045, P559207, P559215, P559236, P559249, P779408 |
| Fleetguard | FF204 |
| Fleetrite | FFR-8204, MKR83 |
| General Motors | 25012681 |
| Gonher | GP62, GP62M |
| Hastings | BF992, FF835 |
| Kralinator | F193 |
| LUBER-FINER | LFP3693F, LK141T, LK151T, LK185T, LK59T, LK98T |
| Mann-Filter | WK940/25 |
| Motorcraft | FD-772, FD-772FP |
| NAPA | 3368 |
| Onan | 149-2054 |
| PREMIUM GUARD | DF30285 |
| Purolator | F50032 |
| Thermo-King | 11-3693, 11-3726, 11-6002, 11-6003, 11-6502, 11-6503, 11-9098, 12-3693, 12-3693-A, 12-3726 |
| WIX FILTERS | 33368 |
| Wix | 33368 |
