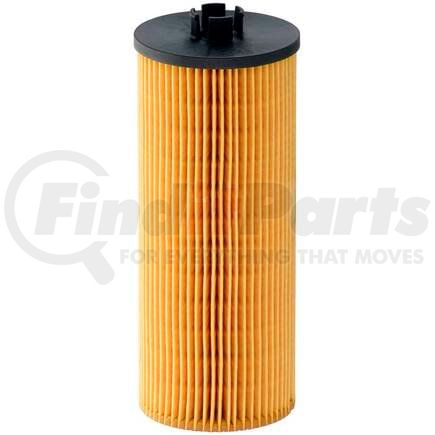

(888) 312-8812 Login SignupFRAM CH9260 Full-Flow Lube Oil Filter
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH9260 Part Description
Manufacturer
Product Description
FRAM, CH9260, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM CH9260 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 8.250 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.458 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 3.585 IN |
| O-ring Outside Diameter | 3.743 IN |
| O-ring Thickness | 0.158 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.268 in |
| Outer Diameter Top | 3.268 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | Closed |
| Torque Nut | No |
| Washable | No |
| Washer (1) Inside Diameter | 1.024 IN |
| Washer (1) Outside Diameter | 1.261 IN |
| Washer (1) Thickness | 0.079 IN |
| Washer (2) Inside Diameter | 0.985 IN |
| Washer (2) Outside Diameter | 1.154 IN |
| Washer (2) Thickness | 0.051 IN |
| Washer Inside Diameter | 1.182 IN |
| Washer Outside Diameter | 1.418 IN |
| Washer Thickness | 0.079 IN |
| Bottom Inside Diameter | 1.458 IN |
| Outside Diameter Top | 3.268 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100028761 |
| UNSPSC | 15121501 |
FRAM CH9260 Cross References
| Brand | Part Number |
|---|---|
| ALLIANCE | ABP/N10G-LF3914 |
| Alliance Parts | ABP/N10G-LF3914 |
| BALDWIN | P7188 |
| CARQUEST | 84215 |
| Carquest Premium Filters | 84215 |
| DEUTZ | 2931095, 4252248 |
| DONALDSON | P550761 |
| ECOGUARD | X5684 |
| FLEETGUARD | LF3914 |
| Fleetguard | LF16144 |
| HASTINGS | LF552 |
| HENGST | E161 |
| Hengst | E161 H01 D28, E161H01 |
| LUBER-FINER | LP8741 |
| MAHLE | OX174D, OX174DECO |
| MANN-HUMMEL FILTERS | HU945/2x |
| Mann-Filter | HU945/2X |
| Mercedes-Benz | 000 180 1709, 1801709, 906 180 0009, A 000 180 17 09, A000 180 1709, A 906 180 0209C9262 |
| NAPA | 7215 |
| PARTS PLUS | LP8741 |
| PREMIUM GUARD | PG5684 |
| PUROLATOR | L45684 |
| WIX FILTERS | 57215 |
| Wix | 57215 |
FRAM CH9260 Fits Vehicles
- Freightliner B2 (2005-2007)
- Freightliner Century Class (2004)
- Freightliner FL70 (2000-2003)
- Freightliner FL60 (2000-2004)
- Freightliner FL50 (2000-2004)
- Freightliner FS65 (2001-2007)
- Suzuki Aerio (2002)
- Sterling Truck L7500 (2004-2010)
- Sterling Truck LT7500 (2005-2006)
