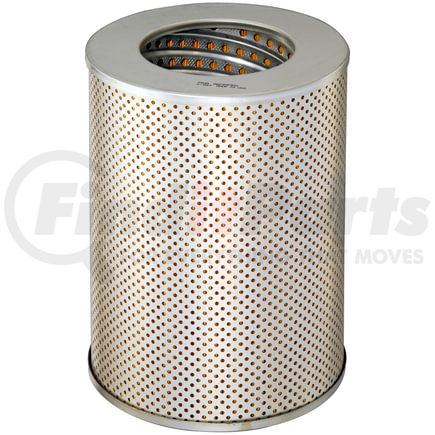

(888) 312-8812 Login SignupFRAM C1669 Cartridge Hydraulic Filter
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM C1669 Part Description
FRAM C1669 Specifications
Product Attributes
| Universal Or Specific Fit | Specific |
| Bottom Outside Diameter | 6.010 in |
| Filter Type | Cartridge |
| Gasket Inside Diameter | 7.750 IN |
| Gasket Inside Diameter (1) | 5.120 IN |
| Gasket Inside Diameter (2) | 3.500 IN |
| Gasket or Seal Included | Yes |
| Gasket Outside Diameter | 9.620 IN |
| Gasket Outside Diameter (1) | 7.000 IN |
| Gasket Outside Diameter (2) | 4.375 IN |
| Gasket Thickness | 0.062 IN |
| Gasket Thickness (1) | 0.065 IN |
| Gasket Thickness (2) | 0.062 IN |
| Gasket Type | Cover |
| Grade Type | Regular |
| Height | 8.531 in |
| Housing Color | NA |
| Inner Diameter Bottom | 3.525 in |
| Mounting Type | Cartridge |
| New Or Remanufactured | New |
| Outside Diameter Top | 6.010 in |
| Reusable | No |
| Top Inside Diameter | 3.525 in |
| Bottom Inside Diameter | 3.525 IN |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8421290065 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100421654 |
| UNSPSC | 40161515 |
FRAM C1669 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF427 |
| ACDelco | PF427 |
| ALLIS-CHALMERS | 9038953 |
| Allis Chalmers | 9038953 |
| BALDWIN | PT193, PT193-3 |
| BIG A | 92134 |
| CARQUEST | 85134 |
| CATERPILLAR | 3I-1176, 4H-8729 |
| CO-OP | PM-354 |
| Coopers | AZH003 |
| Donaldson | HFP550427, P550427 |
| Euclid | 4009444, 9003531, 9029081, 9030931, 9038953, 9190077, 9190105, 9207229, 9217353, 9218675 |
| Fleetguard | HF6190 |
| Fleetrite | HFR-86190, LFR-8627 |
| General Motors | 5577827, 9003531, 9029081, 9030931, 9038953, 9218675 |
| Gonher | G185, G185M |
| Hastings | HF761, HF934, LF627 |
| Kralinator | L874G |
| LUBER-FINER | LP229 |
| Long | 733017 |
| Motorcraft | FH-13 |
| NAPA | 1134 |
| Purolator | H40114 |
| Rol-Pak | PEUC-62929 |
| Terex | 9038953 |
| WGB | S-205-CP |
| WIX FILTERS | WIX FILTERS, 51134 |
| Wix | 51134 |
