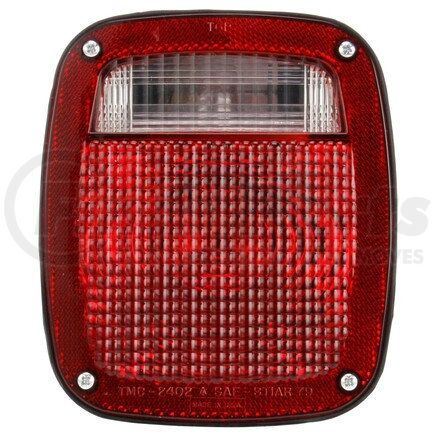

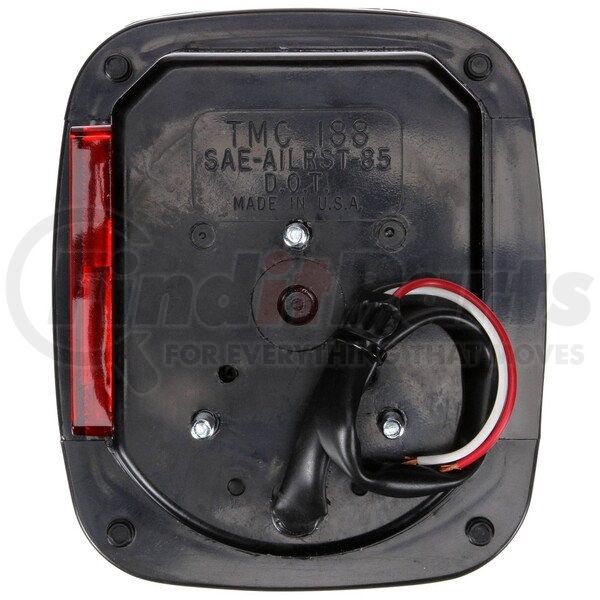

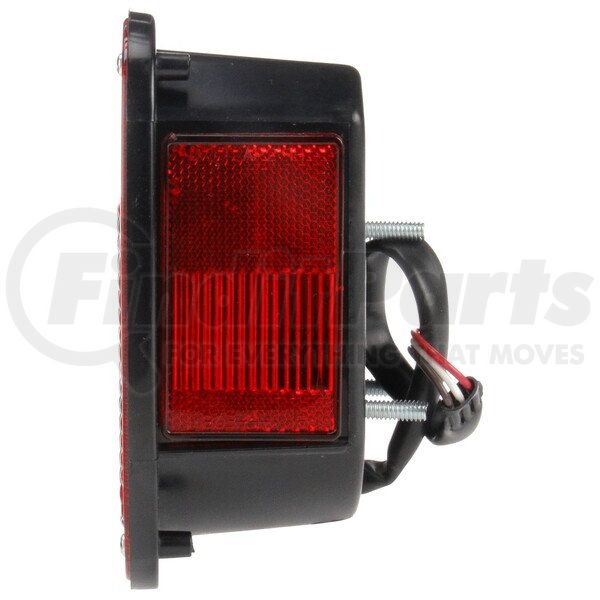

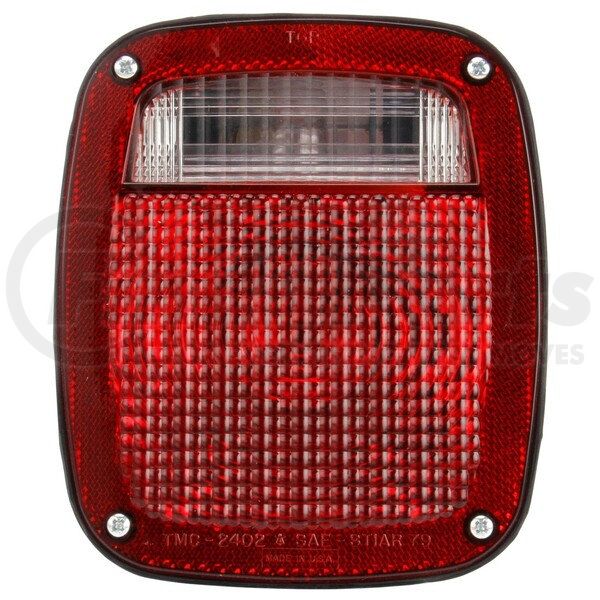

(888) 312-8812 Login SignupTRUCK-LITE 4026 Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , License Light, Hardwired, Stripped End, 12V
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
TRUCK-LITE 4026 Part Description
Manufacturer
Features and Benefits
- GMC# 477332(LH)
- Jeep# SF5758254(LH)
- Dodge# 4114562(RH)
- GMC# 477331(RH)
- Jeep# SF5758255(RH)
- Features universal weatherproof loom wire harness
Technical Specifications
| Compliance Family | FMVSS 108|DOT|SAE |
| Product Type | Combination Box Lights |
| Packaging Type | Standard |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | S2|I6|(2)R|A|T |
| VMRS | 034-002-013 |
| Warranty | 1-Year |

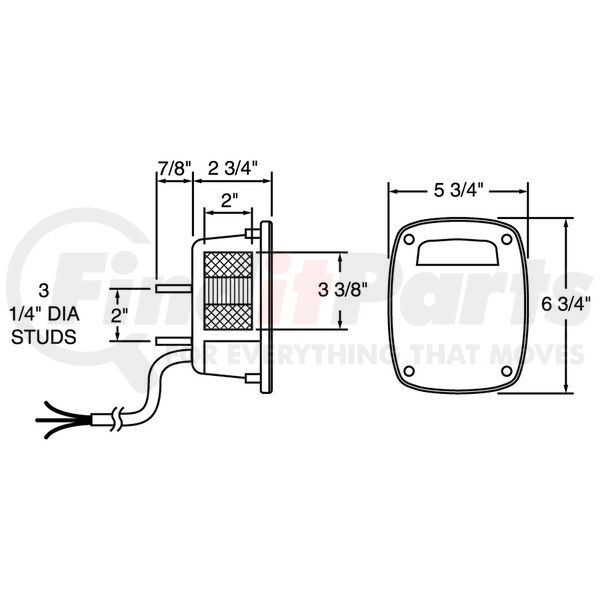

| Total Height_INH | 6.75 |
| Total Height_MMT | 171.45 |
| Total Depth_INH | 2.75 |
| Total Depth_MMT | 69.85 |
| Total Width_INH | 5.75 |
| Total Width_MMT | 146.05 |
| Plug Side One | Hardwired |
| Number of Wires | 3 |
| OEM Replacement | 4114562|477331|SF5758255 |
| Lens Height_INH | 6.75 |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Color | Red|Clear |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Voltage_VLT | 12 |
| Number of Diodes/Bulbs | 2 |
| Mounting Connector Diameter_INH | 0.25 |
| Lens Width_INH | 5.75 |
| OEM | Dodge |
| Lighting Technology | Incandescent |
| License Lamp (Y/N) | Yes |
| Housing Color | Black |
| Plug Side Two | Stripped End |
| Common Size | 5"x6" |
| Mount Type | 3 Stud Mount |
| Current Major_AMP | 2.1 |
| Lamp Connection | Hardwired |
| Wire Gauge | 18 |
| Current Minor_AMP | 0.59 |
| Housing Material | Polycarbonate |
| Position | Right Hand Side |
TRUCK-LITE 4026 Cross References
| Brand | Part Number |
|---|---|
| GROTE | 52822 |
