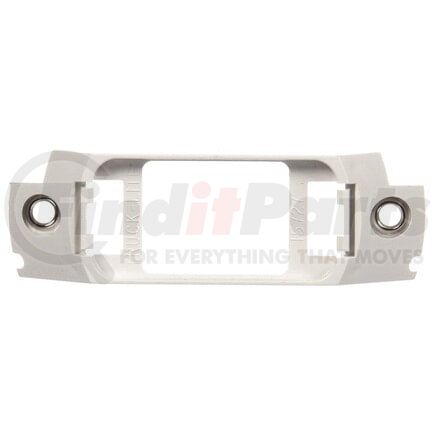

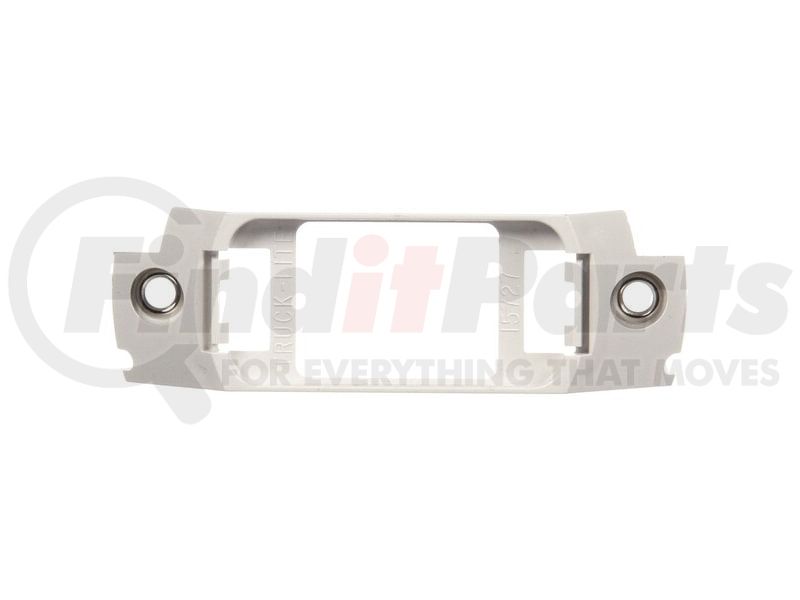

(888) 312-8812 Login SignupTRUCK-LITE 15413 Auxiliary Light Mounting Bracket Hardware Kit - 15 Series Lights, Used In Rectangular Shape Lights, White Abs, 2 Screw Bracket Mount, Pl-10, Ring Terminal/ .156 Bullet Shunt, Kit
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
TRUCK-LITE 15413 Part Description
Manufacturer
Features and Benefits
- Extra strength plastic construction
- Features top cut out area on mount #15727 for narrow rail design
- Easy snap-in lamp installation
- Suitable for PC requirements with incandescent lamps
Technical Specifications
| Product Type | Bracket Mount |
| Packaging Type | Standard |
| KIT (Y/N) | Yes |
| Series | 15 Series |
| VMRS | 034-004-036 |
| Warranty | 1-Year |
| Total Height_INH | 1.37 |
| Total Height_MMT | 34.8 |
| Total Depth_INH | 0.94 |
| Total Depth_MMT | 23.8 |
| Total Width_INH | 4.37 |
| Total Width_MMT | 111 |
| Plug Side One | PL-10 |
| Number of Wires | 2 |
| Mount/Trim Material | ABS |
| Mounting Connector Diameter_INH | 0.244 |
| Plug Side Two | Ring Terminal|.156 Bullet Shunt |
| Common Size | 1"x2" |
| Compatible Light Shape | Rectangular |
| Mount Type | 2 Screw Bracket Mount |
| Mount/Trim Color | White |
| Lamp Connection | PL-10 |
| Wire Gauge | 16 |
TRUCK-LITE 15413 Cross References
| Brand | Part Number |
|---|---|
| GROTE | 43370 |
TRUCK-LITE 15413 Customer Reviews
No reviews yet
Be the first to review this product!
TRUCK-LITE 15413 Manufacturer Information
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
