(888) 312-8812 Login SignupCARTER FUEL PUMPS P76355M Fuel Pump Module Assembly
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CARTER FUEL PUMPS P76355M Part Description
Manufacturer
Product Description

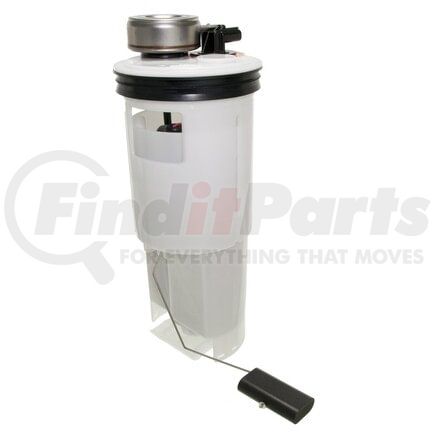

Fuel Pump Module Assembly
Features & Benefits
- Carter Electric Fuel Pumps and Electric Fuel Pump Assemblies are made with all new materials under rigorous quality controlled manufacturing and testing procedures.
- Quality Carter Electric Fuel Pumps and Fuel Pump Assemblies deliver optimum performance while providing long life.
- Most applications include the necessary accessories such as tank seals, patented high-gradient density strainers and wiring harnesses.
- Fuel sensor design provides resistance to corrosive fuel blends and additives.
CARTER FUEL PUMPS P76355M Specifications
Product Attributes
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Voltage | 12 2H |
| Connector Color | Black |
| Regulator Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick Connect |
| Fuel Filter Included | No |
| Inlet Fitting Thread Size | 3/8 IN |
| Minimum Pressure | 58.0 PS |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Minimum Flow Rating | 35 GPH |
| Pump Type | Electric |
| 65000 | No Proposition 65 warning is required with this product. |
| Average Current Draw | 9.0 68 |
| Average Flow Rating | N/A |
| Connector Quantity | 1 |
| Fuel Type | N/A |
| Gasket Or Seal Material | Rubber |
| Height | 15.35 IN |
| Height | 390 MM |
| Housing Length | N/A |
| Housing Material | POM |
| Housing Width | N/A |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | 3/8 |
| Inlet Outside Diameter | N/A |
| Inlet Quantity | N/A |
| Internal or External | Internal |
| Maximum Pressure | 108.75 PSI |
| Minimum Pressure | 43.5 PSI |
| Outlet Fitting Thread Size | N/A |
| Outlet Outside Diameter | 9.49 MM |
| Outlet Outside Diameter | 0.37 IN |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | N/A |
Additional Information
| Country of Origin (Primary) | CN |
| Country of Origin 2 | MX |
| EAR99 | |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime Warranty |
| Warranty Special UOM | TX |
| UPC | 00614046970335 |
| VMRS Code | 044003258 |
| UNSPSC | 40151532 |
CARTER FUEL PUMPS P76355M Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 2920463 |
| AIRTEX | E7170M |
| AUTOBEST | F3181A |
| Airtex Fuel Pumps | E7170M |
| Carquest Premium Fuel Pumps | M3496266 |
| Chrysler | 5104 697AB, 5104 697AA, RL104697AC, 5104 697AC |
| DELPHI | FG0814 |
| DENSO | 953-3073 |
| Delphi Fuel Pumps | FG0814 |
| EVO Driveline | AFS0931S |
| GMB | 520-2840 |
| N/A | E7170M, 2920463, 5104 697AA, 5104 697AB, 5104 697AC, A30266, AFS0931S, C0470M, FG0814, M3496266, RL104697AC, SP7035M, USEP7170M |
| NAPA Fuel Pumps | C0470M |
| Precision Fuel | A30266 |
| Spectra Premium | SP7035M |
| TI Automotive | TU183 |
| TruGrade | B13112102TG |
| US Motor Works | USEP7170M |
CARTER FUEL PUMPS P76355M Fits Vehicles
- Dodge Ram 3500 (2004)
- Dodge Ram 2500 (2004)
