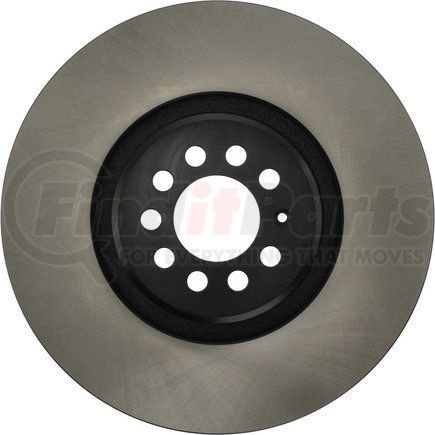

(888) 312-8812 Login SignupCENTRIC 125.33094 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.33094 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33094 Specifications
Product Attributes
| Misc Holes [cntrc] | 5 |
| Vane Style [cntrc] | Curved |
| Weight [cntrc] Kgs | 10.680 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 23.500 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 30.000 MM |
| Discard Thickness | 1.181 IN |
| Nominal Thickness | 1.256 IN |
| Nominal Thickness | 31.900 MM |
| Hat Finish | Painted |
| Overall Height | 35.300 MM |
| Overall Height | 1.390 IN |
| Outside Diameter | 334.000 MM |
| Outside Diameter | 13.150 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.559 IN |
| Center Hole Diameter | 65.000 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.610 IN |
| Stud/Lug Hole Diameter | 15.500 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890729259 |
CENTRIC 125.33094 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 432166 |
| MAGMA PRODUCTS | PSR583131 |
| N/A | 0832985, BD180021, 432166, 45109, 90074026D, 45109G, 1J0615301AA, 8N0615301B |
CENTRIC 125.33094 Fits Vehicles
- Audi TT Quattro (2004-2006)
