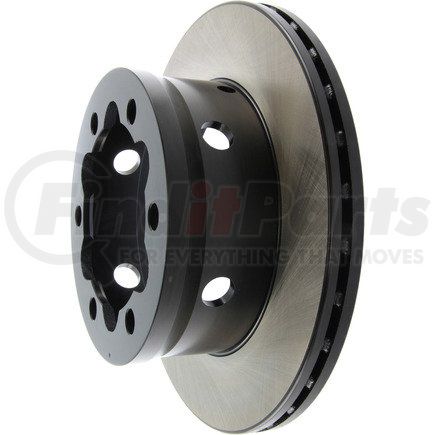

(888) 312-8812 Login SignupCENTRIC 125.35071 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$12499
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
CENTRIC 125.35071 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.35071 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 16.500 |
| Misc Holes [cntrc] | 6 |
| Weight [cntrc] Kgs | 7.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Pillar |
| Discard Thickness | 19.000 MM |
| Discard Thickness | 0.748 IN |
| Nominal Thickness | 21.900 MM |
| Nominal Thickness | 0.862 IN |
| Hat Finish | Painted |
| Overall Height | 3.669 IN |
| Overall Height | 93.200 MM |
| Outside Diameter | 284.500 MM |
| Outside Diameter | 11.201 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 120.000 MM |
| Center Hole Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 145.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.709 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890730019 |
CENTRIC 125.35071 Cross References
| Brand | Part Number |
|---|---|
| MAGMA PRODUCTS | PSR145159 |
| N/A | BD126280, E125-40-076, E130-40-076, 422196, R4413715, 43090, YH145768, 27290, 34777, 53020G, 9044230212, 9044230312, 904423051207, 5103606AA, 2D0615601B, 9044230512, 5103606AC, 780196P, 53020, 880196, 19682, 90040039, E12288, E12540076, E13040076 |
| RAYBESTOS | 780196, 780196R |
| Raybestos Brakes | 780196, 780196R |
| WAGNER | BD126280 |
CENTRIC 125.35071 Fits Vehicles
- Freightliner Sprinter 3500 (2002-2006)
- Mercedes-Benz Sprinter (2004-2006)
- Dodge Sprinter 3500 (2003-2006)
