CENTRIC 122.61052 Part Description
Manufacturer
Product Description

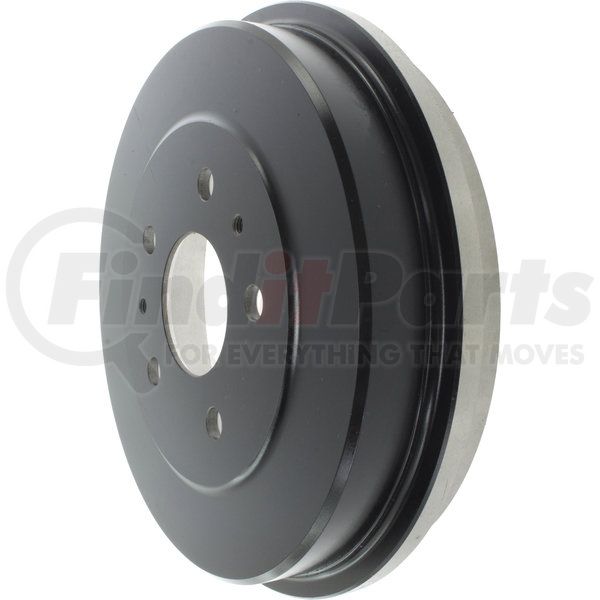

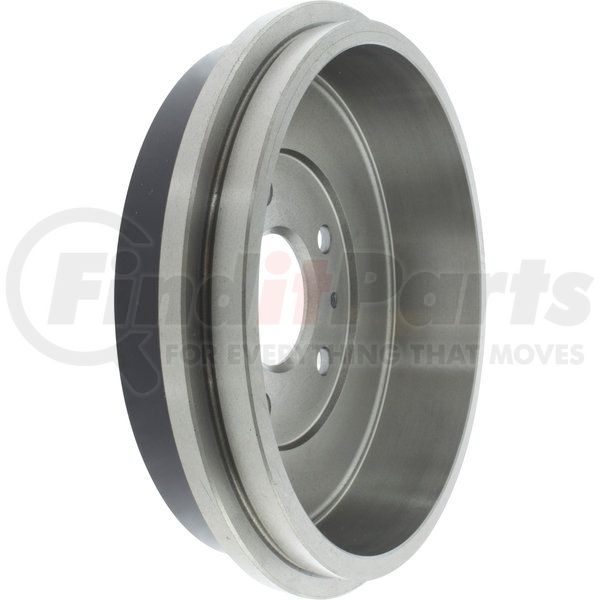

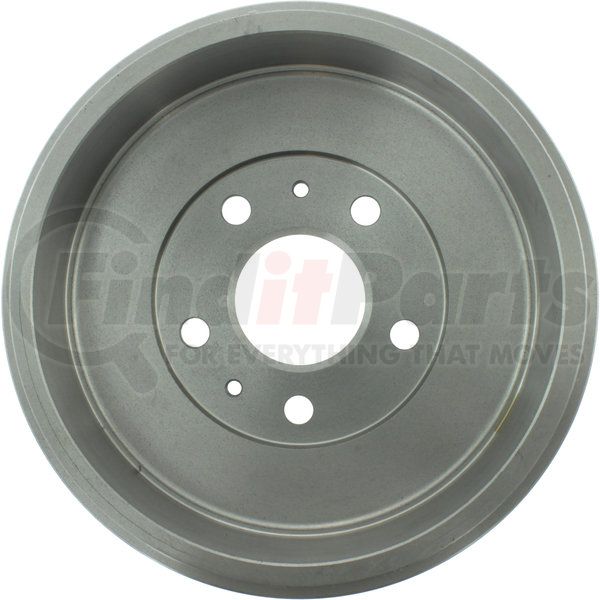

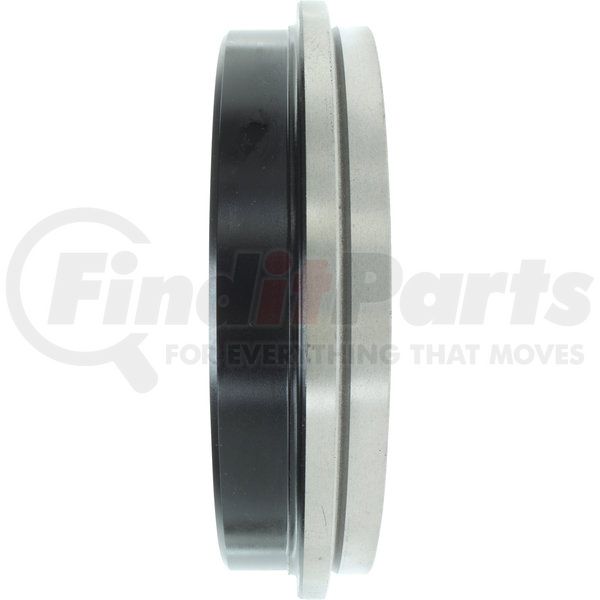

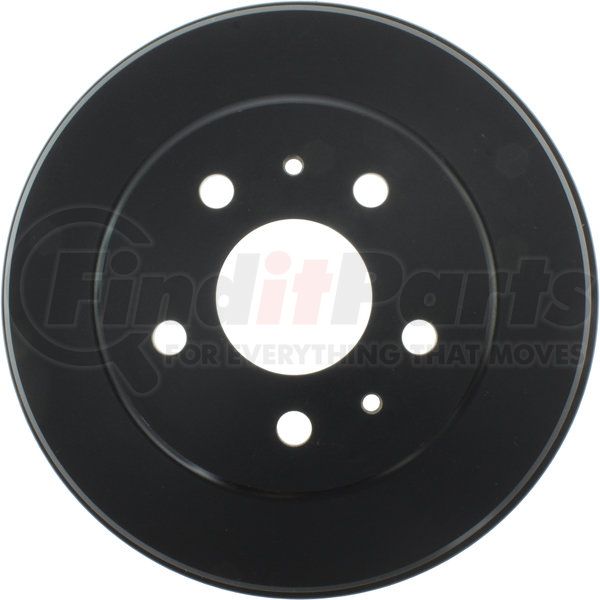

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.61052 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.273 |
| Weight [cntrc] Lbs | 13.800 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 63.246 |
| Hub Hole / Register [cntrc] In | 2.490 |
| Height [cntrc] Mm | 65.888 |
| Height [cntrc] In | 2.594 |
| Friction Surface Width [cntrc] Mm | 49.600 |
| Friction Surface Width [cntrc] In | 1.953 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.200 MM |
| Maximum Brake Diameter (Discard) | 9.063 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 271.000 MM |
| Outside Diameter | 10.669 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.800 MM |
| Mounting Hole Diameter | 0.543 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890721697 |
CENTRIC 122.61052 Cross References
CENTRIC 122.61052 Fits Vehicles
- Ford Focus (2012-2018)
