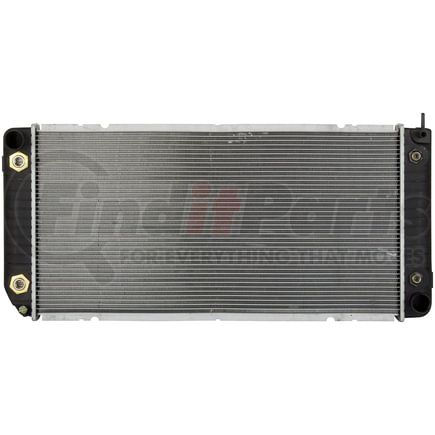

(888) 312-8812 Login SignupSPECTRA PREMIUM CU2043 Radiator
Tap to view 3 more
$40599
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
SPECTRA PREMIUM CU2043 Part Description
1996-02 CHEVROLET TRUCK & SUV-VAN - EXPRESS, CHEVROLET TRUCK & SUV-VAN - G SERIES, GMC-VAN - G SERIES, GMC-VAN - SAVANA
SPECTRA PREMIUM CU2043 Specifications
Product Attributes
| California_prop 65 Message | Y |
| Core Row Quantity | 2 |
| Frame Included | No |
| Inlet Diameter | 1.8125 IN |
| Inlet Location | Top Left |
| Outlet Diameter | 1.8125 IN |
| Engine Oil Cooler Included | Yes |
| Transmission Oil Cooler Plate Quantity | 7 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | Yes |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Saddle |
| Engine Oil Cooler Fitting Type | 1/2-14 NPT Female |
| Engine Oil Cooler Fittings Distance Apart | 11.5 |
| Installation Kit / Hardware Kit / Package Contents | (ACPK181) 1 x Instruction Sheet 2 x GM 5/8" Quick Connect Oil Cooler Adapter X 1/2"-14 NPT Male 2 x GM 3/8" Quick Connect Oil Cooler Adapter X 5/8"-18 UNF Male 1 x Disconnect Tool |
| Engine Oil Cooler Number of Plates | 6 |
| Engine Oil Cooler Type | Plated |
| Core Height | 34 IN |
| Core Thickness | 2.125 IN |
| Core Width | 17.25 IN |
| Inlet Header Length | 18.5 IN |
| Outlet Header Length | 18.5 IN |
| Core Material | Aluminum |
| Outlet Location | Bottom Right |
| Transmission Oil Cooler Included | Yes |
| Inlet Header Width | 3.25 IN |
| Outlet Header Width | 3.25 IN |
| Transmission Oil Cooler Type | Plated |
| Transmission Oil Cooler Distance between Fittings | 11.5 IN |
| Transmission Oil Cooler Fitting Type | 5/8-18 UNF Female |
| Tank Material | Plastic |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| Harmonized Tariff Code (HTS) | 8708915000 |
| Warranty Time UOM | MO |
| Warranty Time | 24 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708912900 |
| Core Class | COM |
| UPC | 00671607729269 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
SPECTRA PREMIUM CU2043 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 2043 |
| APDI | 8012043 |
| APDI RADS | 8012043 |
| Autokool | 2043 |
| Cancore Industries | C2043 |
| CryoMAX | 0AGM5664, 2043 |
| DPI (DataPoint Inc) | 2043 |
| Delphi | RA1016 |
| GLOBAL PARTS DISTRIBUTORS | 2043C |
| General Motors | 15766917, 52473429, 52486308 |
| Keystone Auto Industries | RAD2043 |
| Modine | 2911 |
| N/A | 431420, 9560, CU2043 |
| NAPA | 2911 |
| Northern Radiator | 232043 |
| OSC | 2043 |
| Onix | OR2043 |
| Performance Radiator | 2007, 2043 |
| REACH COOLING | 41-2043 |
| Reach Cooling | 412043, REA412043 |
| Thermal Solutions Manufacturing | 431420, 9560 |
SPECTRA PREMIUM CU2043 Fits Vehicles
- GMC Savana 3500 (1996-2002)
- GMC G3500 (1996)
- GMC Savana 2500 (1996-2002)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
SPECTRA PREMIUM CU2043 Customer Reviews
No reviews yet
Be the first to review this product!
SPECTRA PREMIUM CU2043 Manufacturer Information
When it comes to engine management, heavy-duty cooling, undercar, and classic car products, Spectra Premium has always been the Premium Choice since 1989. In the last 30 years, Spectra Premium has solidified its position as a world leader in the production of steel fuel tanks. Guided by the company's three core values—trust, collaboration, and creativity—its Mobility Solutions division continues to develop, manufacture, and sell advanced technologies that support sustainable mobility. Spectra's passion for innovation is evident from the early phases of the design process to the final stages of product manufacturing and testing. With decades of manufacturing expertise, OE design, and state-of-the-art technologies, Spectra Premium's automotive sensors, emission control components, radiators, air coolers, body panels, fuel tanks, and many other products are definitely built to last.
SPECTRA PREMIUM CU2043 Questions & Answers
No questions yet
Be the first to ask a question about this product!
