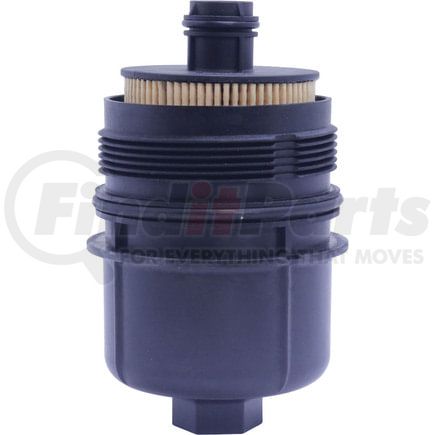

(888) 312-8812 Login SignupFRAM TG12939 Cartridge Oil Filter
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM TG12939 Part Description
Manufacturer
Product Description
FRAM, TG12939, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
Cartridge Oil Filter
FRAM TG12939 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Cartridge |
| Gasket Or Seal Included | Yes |
| Grade | Premium |
| Grade Type | Premium |
| Height | 5.649 IN |
| Housing Color | NA |
| Inside Diameter Bottom | 1.024 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 2.953 IN |
| O-ring (1) Outside Diameter | 3.095 IN |
| O-ring (1) Thickness | 0.142 IN |
| O-ring (2) Inside Diameter | 0.362 IN |
| O-ring (2) Outside Diameter | 0.466 IN |
| O-ring (2) Thickness | 0.104 IN |
| O-ring (3) Inside Diameter | 0.925 IN |
| O-ring (3) Outside Diameter | 1.027 IN |
| O-ring (3) Thickness | 0.102 IN |
| O-ring Inside Diameter | 0.787 IN |
| O-ring Outside Diameter | 0.891 IN |
| O-ring Thickness | 0.104 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.295 in |
| Outer Diameter Top | 3.295 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | Closed in |
| Torque Nut | Yes |
| Washable | No |
| Washer Indside Diameter | 0.563 IN |
| Washer Outside Diameter | 0.768 IN |
| Washer Thickness | 0.059 IN |
| Bottom Inside Diameter | 1.024 IN |
| Grade Type | Premium |
| Outside Diameter Top | 3.295 in |
| Replaceable Filter | Yes |
| Washer Inside Diameter | 0.563 IN |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00840357607305 |
| UNSPSC | 15121501 |
FRAM TG12939 Cross References
FRAM TG12939 Fits Vehicles
- Jeep Gladiator (2021-2023)
- Ram 1500 (2020-2023)
- Jeep Wrangler (2020-2023)
- Suzuki Aerio (2002)
FRAM TG12939 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM TG12939 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
FRAM TG12939 Questions & Answers
No questions yet
Be the first to ask a question about this product!
