FRAM CH12795 Part Description
Manufacturer
Product Description
FRAM, CH12795, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

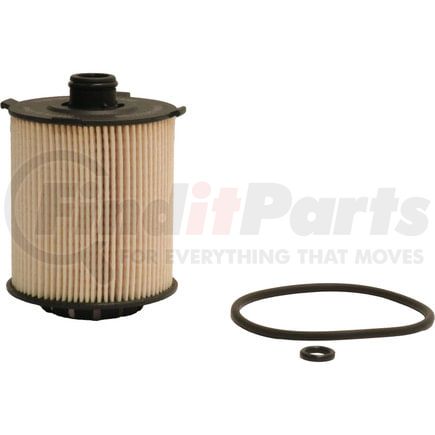

Cartridge Oil Filter
Cartridge Oil Filter
FRAM CH12795 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Cartridge |
| Grade | Advanced |
| Grade Type | Regular |
| Height | 4.134 IN |
| Housing Color | NA |
| Inside Diameter Bottom | 0.862 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 0.386 IN |
| O-ring (1) Outside Diameter | 0.49 IN |
| O-ring (1) Thickness | 0.104 IN |
| O-ring Inside Diameter | 3.268 IN |
| O-ring Outside Diameter | 3.429 IN |
| O-ring Thickness | 0.161 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.248 in |
| Outer Diameter Top | 3.031 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.575 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.862 IN |
| Outside Diameter Top | 3.031 in |
| Replaceable Filter | Yes |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00840357605349 |
| UNSPSC | 15121501 |
FRAM CH12795 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 041-0887 |
| Carquest | 95241, 95479 |
| Champ | P1023, P1102 |
| FRAM Extra Guard | CH12795 |
| LUBER-FINER | P1102 |
| Mobil 1 | M1C-260A |
| NAPA | 2100241 |
| NAPA Gold Filters | 100241, 100000 |
| NAPA Platinum Filters | 4100241 |
| Premium Guard | PG99939EX |
| Purolator | L21350 |
| Purolator BOSS | PBL21350 |
| PurolatorONE | PL21350 |
| STP Filters | S45012, S45012XL, S45039, S45039XL |
| Service Champ | CF9204 |
| Valvoline | VO-174 |
| Volvo | 32257032 |
| WIX FILTERS | WL10241, WL10241XP |
| Wix | WL10241 |
| Wix XP | WL10241XP |
FRAM CH12795 Fits Vehicles
- Volvo S90 (2022-2025)
- Volvo XC60 (2020-2025)
- Suzuki Aerio (2002)
