BILSTEIN 24-317863 Part Description
Manufacturer
Product Description

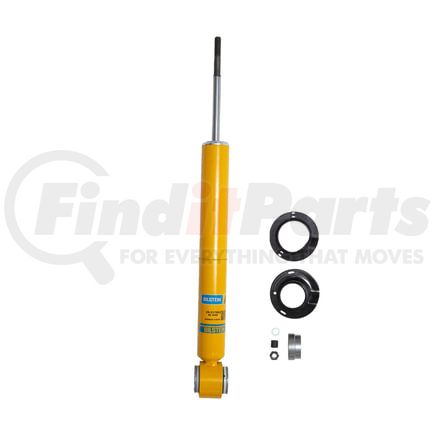

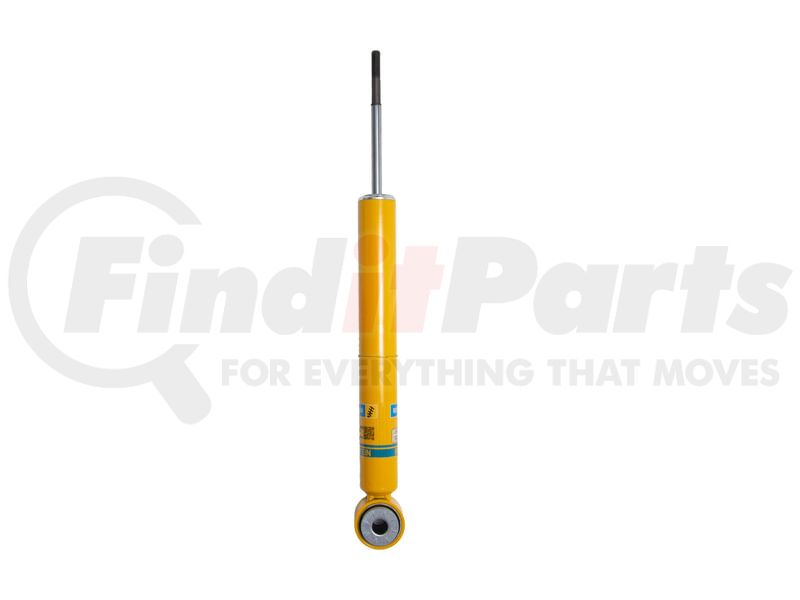

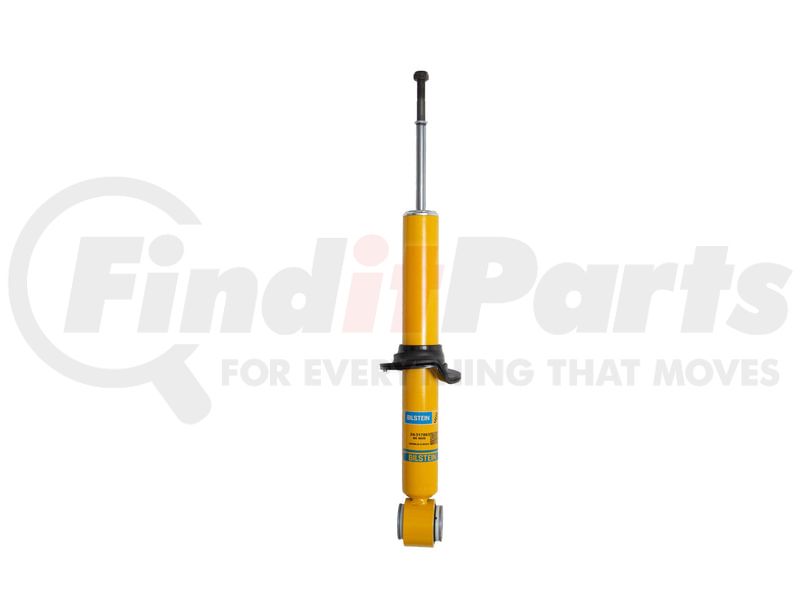

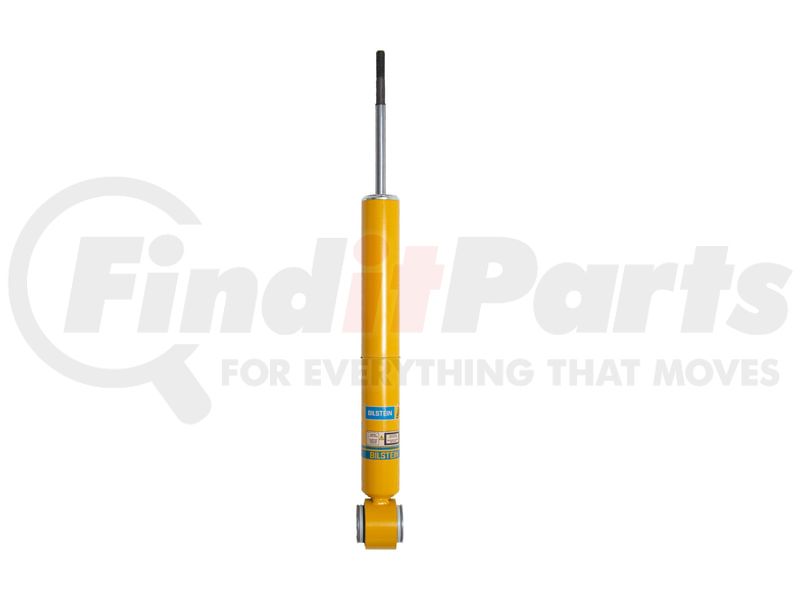

B6 4600 - Suspension Shock Absorber
Application Summary
Ford F-150 2013-2009
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Specific tuning for stock height vehicles
- Uses OEM springs and mounting hardware
FORD F-150 2013-2009
BILSTEIN 24-317863 Specifications
Product Attributes
| Internal Design | Monotube |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Body Design | Smooth Body (Non-coilover) |
| RESERVOIR | No |
| Prop 65 (Y/N) | Y |
| Upper Mount Type | Stem |
| Finish | Yellow Paint |
| Body Diameter (id) | 46mm |
| Lower Mount Type | Eye 20.3mm |
| Parttype | Shocks / Struts |
| Spring Seat Included | Yes |
| Series | B6 4600 |
| Adjustable Damping | Non-Adjustable |
| Segment | Light Truck |
| Stroke/Travel Length (IN) | 4.73 |
| Collapsed Length (in) | 16.93 |
| Shaft Diameter | 14mm |
| Extended Length (in) | 21.66 |
| Stroke/Travel Length (mm) | 120.1 |
| Piston Diameter | 46mm |
| Extended Length (mm) | 550.2 |
| Collapsed Length (mm) | 430.0 |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860907055 |
BILSTEIN 24-317863 Cross References
| Brand | Part Number |
|---|---|
| Bilstein | F4-BE5-G551-H0, BE5-G551, 24-187404 |
| Ford | AL3Z 18124-EA, AL3Z 18124-SB, BL3Z 18124-F, AL3Z 18124-DA, 9L3Z 18124-EE, 9L3Z 18124-FE, AL3Z 18124-GA, 9L3Z 18124-DE, CL3Z 18124-B, AL3Z 18124-FA |
| Pro Comp Suspension | ZX2109, 621553 |
| Rancho | RS5803 |
BILSTEIN 24-317863 Fits Vehicles
- Ford F-150 (2009-2013)
BILSTEIN 24-317863 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 24-317863 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
