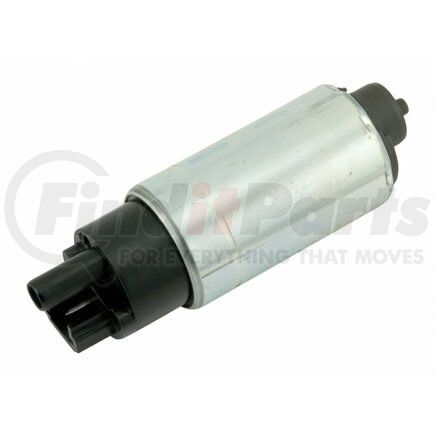

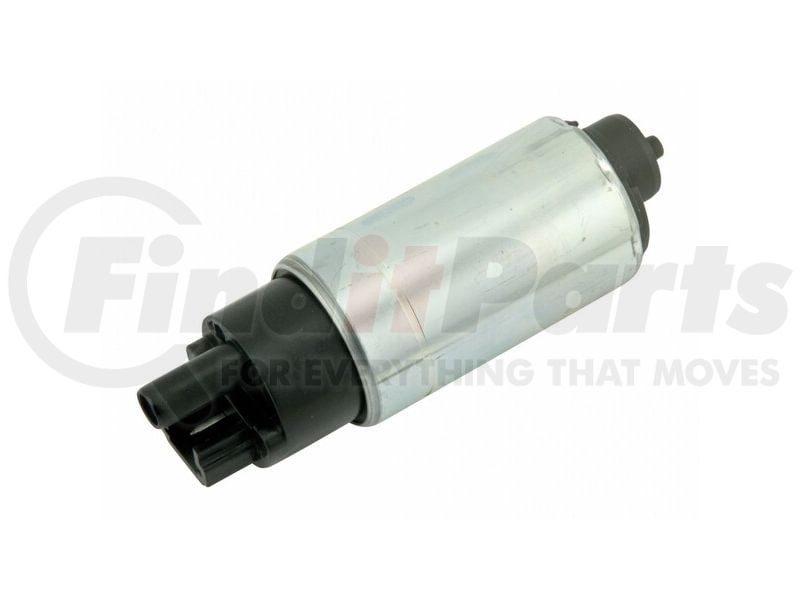

CARTER FUEL PUMPS P74074 Electric Fuel Pump

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CARTER FUEL PUMPS P74074 Part Description

Manufacturer

CARTER FUEL PUMPS

Product Description

Fuel Pump - Electric In Tank

Application Summary

1996 Buick Commercial Chassis (In-Tank); 1994-1996 Cadillac Commercial Chassis (In-Tank); 1994-1996 Cadillac Fleetwood (In-Tank); 1993-1998 Chevrolet B7 B7T042 (In-Tank); 1992-1996 Chevrolet P6000 (In-Tank); 1992-1996 Chevrolet P60 (In-Tank); 1992-1996 Chevrolet Astro (In-Tank); 1995 Chevrolet Blazer (In-Tank); 1995-1996 Chevrolet Caprice (In-Tank); 1992-1996 Chevrolet Corvette (In-Tank); 1994-1996 Chevrolet Impala (In-Tank); 1992-1994 Chevrolet S10 Blazer (In-Tank); 1994-1995 Chevrolet S10 (In-Tank); 1996-1997 Chevrolet Suburban 1500 (In-Tank); 1996-1997 Chevrolet C35 (In-Tank); 1990-1994 Chevrolet C60 Kodiak (In-Tank); 1996-1997 Chevrolet Silverado (In-Tank); 1993-1998 GMC B7 B7T042 (In-Tank); 1992-1996 GMC P6500 (In-Tank); 1992-1995 GMC Jimmy (In-Tank); 1992-1995 GMC Sonoma (In-Tank); 1992-1995 GMC Safari (In-Tank); 1992-1994 Oldsmobile Bravada (In-Tank); 1989 Pontiac Firebird (In-Tank)

Features & Benefits

  • Carter Fuel Systems replacement Electric Pumps consistently deliver fuel at the precise pressure and flow rate the vehicle demands.
Passenger Car/Light Truck Applications
Make Model Year
BUICK ROADMASTER 1996
CADILLAC FLEETWOOD 1996-1994
CHEVROLET ASTRO 1995-1992
BLAZER 1995
CAPRICE 1996-1995
CORVETTE 1996-1992
IMPALA 1996-1994
S10 1995-1994
S10 BLAZER 1994-1992
GMC JIMMY 1995
S15 JIMMY 1994-1992
SAFARI 1995-1992
SONOMA 1995-1992
SYCLONE 1991
TYPHOON 1993-1992
OLDSMOBILE BRAVADA 1994-1992
PONTIAC FIREBIRD 1989

CARTER FUEL PUMPS P74074 Specifications

Product Attributes

Fuel Pump Inlet Type Strainer
Fuel Sending Unit Included No
Internal Or External Internal
Regulator Included No
Maximum Pressure 60.0 PS
Mounting Hardware Included No
Universal Or Specific Fit Specific
Gasket Or Seal Included Yes
Maximum Flow Rating 25.0 gph
Strainer Included No
Inlet Type Strainer
Outlet Type Hose Connection
Mounting Bracket Included No
Connector Shape Rectangle
Voltage 12 2H
In Tank or External In Tank
Negative Ground Yes
Outlet Quantity 1
Pump Type Electrical
Seal And Lock Ring Included No
Terminal Gender Male
Terminal Quantity 2
Terminal Type Pin
Wiring Harness Included No
Fuel Pump Inlet Type Strainer
Maximum Flow Rating 25.0 GPH
Inlet Type Strainer
Outlet Type Hose Connection
Connector Shape Rectangle
Outlet Quantity 1
Terminal Quantity 2
Maximum Pressure 60.0 PSI
Voltage 12V
Gasket Included Y

Additional Information

Remanufactured Part N
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Lifetime Limited Warranty
Warranty Special UOM TX
EAR99
UPC 00724956027903
VMRS Code 044003259
UNSPSC 40151532

CARTER FUEL PUMPS P74074 Cross References

BrandPart Number
1-800-Radiator2910310
AUTOBESTF2281
Bosch Fuel Pumps69225
CARQUEST Fuel PumpsFEP3270
CARTER FUEL PUMPSP90005
DELPHIHP10024, HP10031, FE0110, FE0114
DENSO951-5016
Delphi Fuel PumpsFE0114
EVO DrivelineAFS0209P, RE0209P
FacetFEP3270
GMB530-1071, 530-1070
General Motors25116458, 25117264, 25163473, 6443236, 25116881
N/A25116164, E3270, EP261, EP270, EP306, EP208, 225-261, 25116458, 25116881, 25117264, 25163473, 2910310, 530-1071, 6443236, 69225, A8001, AFS0209P, E16008, FE0114, FEP3270, RE0209P, SP1115, USEP3270
PurolatorFEP3270
Spectra PremiumSP1115
SurefloA8001
US Motor WorksUSEP3270

CARTER FUEL PUMPS P74074 Customer Reviews

No reviews yet

Be the first to review this product!

CARTER FUEL PUMPS P74074 Manufacturer Information

Since 1909, Carter Fuel Systems® has been a trusted provider complete fuel and water pump system solutions for professional installers. Their catalog features both aftermarket and OE pumps that cover 95% of vehicles in operation today. Carter pumps are designed and manufactured in ISO9001 and ISO14001-certified facilities, with more than a dozen validation tests ensuring their products meet or exceed industry standards for quality and performance. Each pump is also specifically engineered for ease of installation, reducing downtime as well as labor costs. Whether it’s for domestic, import, diesel, marine, or performance applications, Carter offers innovative products that are the best of its class.

CARTER FUEL PUMPS P74074 Questions & Answers

No questions yet

Be the first to ask a question about this product!
