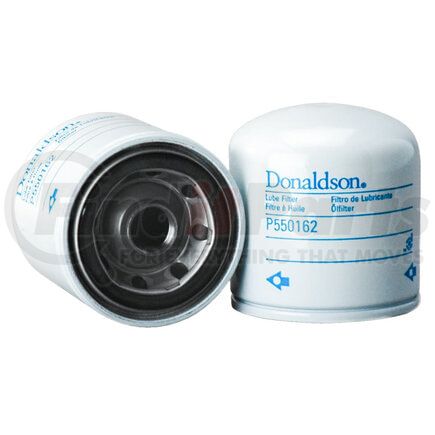

(888) 312-8812 Login SignupDONALDSON P550162 Engine Oil Filter - 3.39 in., Full-Flow Type, Spin-On Style, Cellulose Media Type, with Bypass Valve
MSRP: $14.05
$1099
Save $3.06
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DONALDSON P550162 Part Description
Manufacturer
Product Description
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Integrated bypass valve maintains oil flow to the engine in all temperatures
- Full-flow cellulose media provides a high level of filtration for fine particulates
- Compact 3.39-inch height allows for installation in tight engine compartments
- Standard spin-on threads facilitate a quick, no-tool installation
- Rigid internal center tube prevents the filter element from collapsing under pressure
- Nitrile gasket stays pliable to maintain a leak-proof seal against the engine block
Donaldson Engine Oil Filter
Remove engine-damaging contaminants from circulating oil with the Donaldson Engine Oil Filter. This compact spin-on filter measures 3.39 inches in height and uses full-flow cellulose media to capture carbon, metallic particles, and other debris during normal lubrication. An internal bypass valve maintains oil flow during cold starts or high restriction conditions, preventing temporary oil starvation when viscosity is high. The tightly packed media provides strong dirt-holding capacity while controlling pressure drop at the bearings. Common in medium-duty and industrial applications, the Donaldson P550162 supports consistent oil cleanliness where limited mounting space requires a shorter filter canister.
DONALDSON P550162 Specifications
Product Attributes
| Anti-drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting Hr | 1 bar (15 psi) |
| Bypass Valve Setting LR | 0.8 bar (12 psi) |
| Collapse Burst | 6.9 bar (100 psi) |
| Efficiency 99% | 39 micron |
| Efficiency Test Std | ISO 16889 |
| Gasket Id | 2.13 in |
| Gasket Od | 2.52 in |
| Length | 3.39 in |
| Media Type | Cellulose |
| Outer Diameter | 3.19 in |
| Style | Spin-On |
| Thread Size | M20 x 1.5 |
| Type | Full-Flow |
DONALDSON P550162 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | 88905888, ACD000186, PF1127, PF57, X119, X45 |
| AEC WHITLOCK | MO429 |
| AFE | 44-LF018-MB, 44-LF018 |
| AGRINET LTD | 11900535100YANMAR |
| AIRMAN-HOKUETSU | 1524132090, 8941494180, MM409365 |
| ALCO | SP818, SP934, SP961 |
| BALDWIN | B179 |
| EXXON/MOBIL OIL | M1104, M1104A |
| FLEETGUARD | LF3403 |
| FRAM | PH9688, M1-104A, M1-104, PH3593A, XG9688, TG9688, XG3593A, DL9688, TG3593A |
| LUBER-FINER | PH2808 |
| MAHLE | OC 205, OC 575, OC 500, OC 1673 |
| MANN-HUMMEL FILTERS | L14459, W811/80 |
| MOBIL OIL | M1104, M1104A |
| PUROLATOR | TL14459, TL14459BP, TL14612, L14459, PL14459, PBL14461 |
| WIX FILTERS | 51334 |
DONALDSON P550162 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P550162 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
