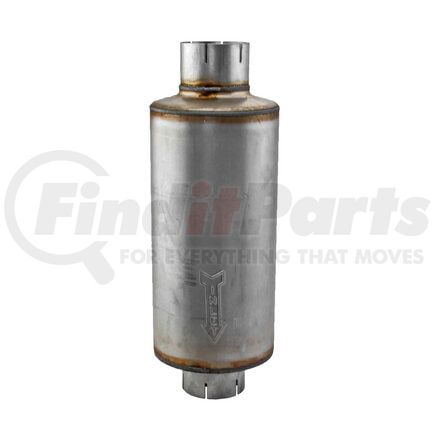

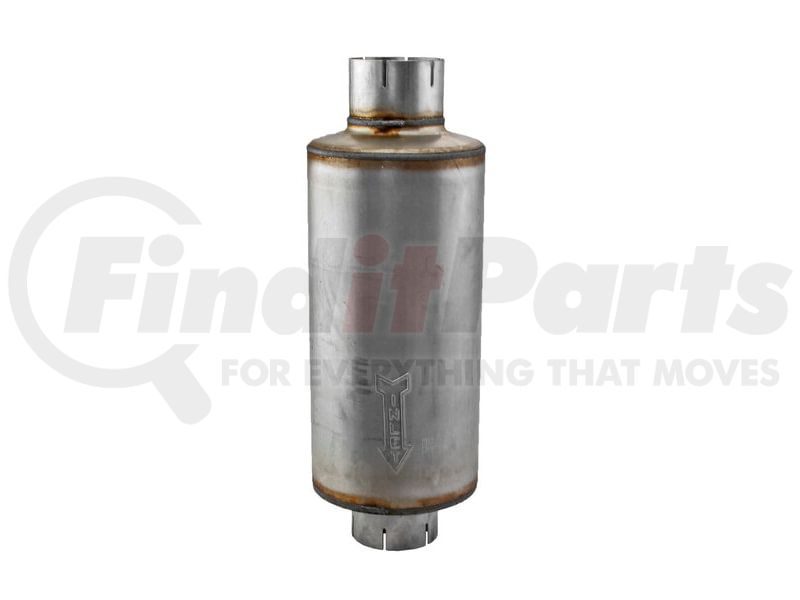

(888) 312-8812 Login SignupDONALDSON M070028 Exhaust Muffler - 19.75 in. Overall length
MSRP: $232.20
$22999
Save $2.21
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 17
DONALDSON M070028 Part Description
DONALDSON M070028 Specifications
Product Attributes
| Body Length | 13.75 in |
| Overall Length | 19.75 in |
| Attenuation Hr | 15 DBA |
| Attenuation Lr | 10 DBA |
| Back Pressure High-range | 2.99 INHG |
| Back Pressure Low-range | 0.98 INHG |
| Back Pressure Mid-range | 2.01 INHG |
| Body Diameter Maximum | 7.01 IN |
| Inlet Diameter | 3.45 IN |
| Outlet Diameter | 3.45 IN |
| Rated Flow Hr | 35 m³/min |
| Rated Flow Lr | 20.4 m³/min |
| Rated Flow Mr | 28.8 m³/min |
| Style | Style 1 |
| Body Length | 13.75 IN |
| Overall Length | 19.75 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708925000 |
| UPC | 00742330004722 |
DONALDSON M070028 Cross References
| Brand | Part Number |
|---|---|
| A P PARTS | 3618, 3618Q |
| ALLMAND BROS | ME431M |
| AP EXHAUST PRODUCTS INC | 3618 |
| CASE/CASE IH | A56029, L013782, L13782, NX14152067, XA58300 |
| CATERPILLAR | 1560203 |
| N/A | 3618, ME431M, M353570, A56029, L013782, L13782, NX14152067, XA58300, 2042783, 7642000080, 10175623, 40282, 040282, 86150M, 0532603, 532503, 532603, M0532603, 210121, 21016, 1560203, 4450, 9837, 9575M070028, 005191020001, 50191021, 5191020001, 811175700, DNM070028, LL84796, TCBH084, 04450, 50871714, 1909122, 208852, 57201B, 87350028, 87350028Q, 78157, M150, VA602286, 1059997 |
| WALKER EXHAUST | 21467, 21470 |
DONALDSON M070028 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON M070028 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
