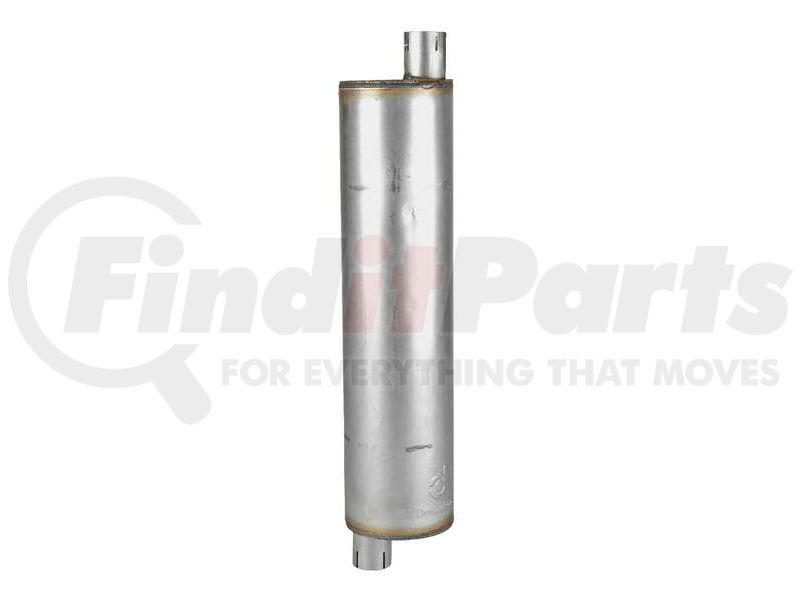

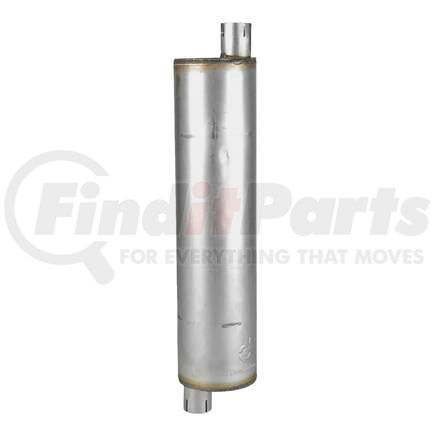

(888) 312-8812 Login SignupDONALDSON M060232 Exhaust Muffler - 29.00 in. Overall length
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DONALDSON M060232 Part Description
DONALDSON M060232 Specifications
Product Attributes
| Body Length | 24.02 in |
| Overall Length | 29.00 in |
| Attenuation Hr | 20 DBA |
| Attenuation Lr | 15 DBA |
| Back Pressure High-range | 2.99 INHG |
| Back Pressure Low-range | 0.98 INHG |
| Back Pressure Mid-range | 2.01 INHG |
| Body Diameter Maximum | 5.98 IN |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 2.02 IN |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 2.02 IN |
| Rated Flow Hr | 14.6 m³/min |
| Rated Flow Lr | 8.4 m³/min |
| Rated Flow Mr | 11.9 m³/min |
| Style | Style 2 |
| Overall Length | 29 IN |
| Body Length | 24.02 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708925000 |
| UPC | 00742330004586 |
DONALDSON M060232 Cross References
| Brand | Part Number |
|---|---|
| A P PARTS | 3680, 3680Q |
| AGCO | T0902013HP |
| APE INDUSTRI AB | 3680 |
| B R LEE INDUSTRIES | 34028 |
| CASE/CASE IH | S230848 |
| N/A | DNM060232, L847141, LL847141, 2269681, M22260, 86681083, 86881083, 2980519892, 1011592, TD022, TD22, S230848, 5157178, 515717800, T0902013HP, IPS4174, 1900401, 1909065, 1909006, 1909010, 221694, 230848, 86136M, 87200177, 87200177Q, 549464C1, 3901, MZM060232, 9575M060232, 9575MZM060232P, B7TZ5230A, C5TZ5230C, C6TZ5230G, C6TZ5230H, C7TZ5230E, C7TZ5230K, C9TZ5230A, 34028, P17581 |
| WALKER EXHAUST | 21169 |
