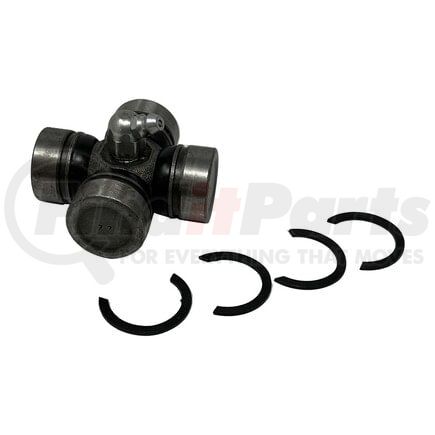

(888) 312-8812 Login SignupDANA 5-92X Universal Joint - Steel, Greaseable, ISR Style, Rockewell L6N Series
Tap to view 8 more
SHIPS TODAY
MSRP: $42.11
$3249
Save $9.62
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
DANA 5-92X Part Description
Manufacturer
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Fits Dana Spicer 30 And 44 and GM 8.5" Front
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- SAE-4340 Nickel Chromoly Steel For Ultimate Endurance
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Enlarged Trunnion Diameter For Added Strength
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
- Needless Bearing Cups And Full Circle Snap Rings Eliminate Danger Of Snap Ring Ejection
| Greaseable: | Y |
| Type: | ISR Style |
| OEM Mfg: | Rockwell |
| OEM Series: | L6N |
| Bearing Cap Diameter (1): | 0.971 in. |
| Bearing Cap Diameter (2): | 0.971 in. |
| Snap Ring (1): | 1.445 in. |
| Snap Ring (2): | 1.445 |
DANA 5-92X Specifications
Product Attributes
| Bearing Cap Diameter (1) | 0.971 IN |
| OEM Mfg | Rockwell |
| OEM Series | L6N |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 0.971 IN |
| Greaseable | Y |
| Sr(1)brng Cap To Brng Cap(osr) | 1.445 |
| Sr(2)brng Cap To Brng Cap(osr) | 1.445 |
| Material | Steel |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Y |
| Snap Ring Type | Internal |
| Grease Zerk Included | Y |
| Grease Fitting Location | Center of Cross |
| Bearing Cap Diameter A (mm) | 24.663 MM |
| Bearing Cap Diameter B (mm) | 24.663 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | N |
| Mounting Hardware Included | N |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913126377 |
| VMRS Code | 024002046 |
DANA 5-92X Cross References
| Brand | Part Number |
|---|---|
| SP592X | |
| ACDelco | 45U6001, 45U6004 |
| AGCO | 5012769 |
| Caterpillar | 8D-2909 |
| Daimler Truck North America | 5 92X, CPL6R-40, SP 5 92X, SP 5 92XHP |
| Dana Commercial Vehicle Service Parts | 2104-592X |
| Freightliner | 5 92X, CPL6R-40, SP 5 92X, SP 5 92XHP |
| Gillig | 82-24101-000 |
| International Harvester (IHC) | 150635R92, 592X, D592X, E592X |
| MERITOR | CPL6R-50 |
| MOOG Chassis Products | 839, 861 |
| Mack | 2104-592X |
| MasterPro | 839, 861 |
| McNeilus | 1468038 |
| Meritor | CPL6R50 |
| Midwest | 5-92XR |
| Motor Coach Industries | 5-92X |
| Navistar | 150635R92, 592X, D592X, DS592X, E592X |
| Neapco OE Series | 1-1475 |
| Orion | OB040507 |
| PAI | EM59210 |
| Paccar Parts | 5-92X, CLEAT 600 |
| Precision | 839, 861 |
| Rockwell International | CP L6R 30, CPL6R-30 |
| SKF | 1-1475, UJ839, UJ861 |
| UAP | 5-92X |
| Volvo | 2104-592X, 3104709, SHP592X, SP 5 92X, SP 592X |
DANA 5-92X Customer Reviews
No reviews yet
Be the first to review this product!
DANA 5-92X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
DANA 5-92X Questions & Answers
No questions yet
Be the first to ask a question about this product!
