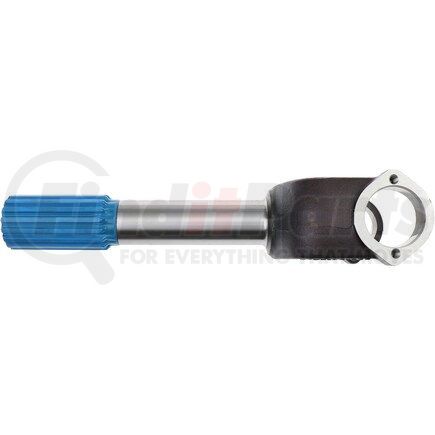

(888) 312-8812 Login SignupDANA 5-82-961-3 1610 Series Drive Shaft Yoke Shaft - 16 Spline, BP Style
Tap to view 5 more
$89949
Limited availability at this price!
55 Day Lead Time
Get it by Wednesday, May 27
DANA 5-82-961-3 Part Description
Manufacturer
| No of Splines | 16 |
| FN | * |
| Spline OD-1 | 2.000 |
| K CL to Spline End | 13.063 |
| R Spline end to Point of Radius | 9.063 |
| L Spline Length | 3.500 |
DANA 5-82-961-3 Specifications
Product Attributes
| Series | 1610 |
| Spline Count | 16 |
| Style | BP |
| Centerline To End Of Splne (K) | 13.063 IN |
| Major Spline Diameter | 2.000 IN |
| Spline Length (L) In | 3.500 IN |
| Angle #1 | 45.0 |
| Spline Hole Minor Diameter | 1.719 IN |
| Spline Width | 0.203 IN |
| End/Spline To Point/Rad. (R) | 9.063 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913214937 |
| VMRS Code | 024002061 |
DANA 5-82-961-3 Cross References
| Brand | Part Number |
|---|---|
| Daimler Truck North America | SP 5 82 751 6, SP 5 82 961 3, SP 5 82 961 3HP |
| Dana Commercial Vehicle Service Parts | 5-82-751-6 |
| Freightliner | SP 5 82 751 6, SP 5 82 961 3, SP 5 82 961 3HP |
| International Harvester (IHC) | 5829613, D5829613, E5829613 |
| Navistar | 5829613, D5829613, DS5829613, E5829613 |
| Paccar Parts | 05036AP, 5-82-961-3 |
| Peterbilt | 1HB27 |
| UAP | 5-82-961-3 |
| Volvo | SP 5829613 |
DANA 5-82-961-3 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 5-82-961-3 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
