(888) 312-8812 Login SignupRAYBESTOS 680754R Raybestos R-Line Brake Rotor
MSRP: $126.49
$9849
Save $28.00
Limited availability at this price!
In Stock
Get it by Friday, Mar 20
RAYBESTOS 680754R Part Description
Manufacturer
Product Description

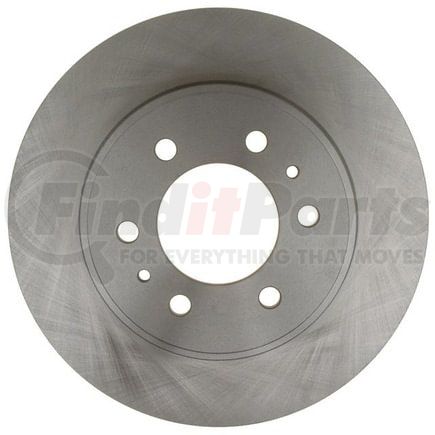

Raybestos R-Line Brake Rotor
Application Summary
2009 Ford F-150 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680754R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.55 IN |
| Center Hole Diameter | 90.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.543 IN |
| Inside Diameter | 217 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.605 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 2.06 IN |
| Overall Height | 52.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778708 |
RAYBESTOS 680754R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 274753, YH274753, YH274753C, YH274753P |
| AUTOPARTSOURCE | 492985 |
| AUTOZONE | 75000, 75000DG |
| BENDIX | PRT6000 |
| BOSCH | 20011512 |
| BRAKEBEST | 20011512, 680754, 680754R, 680754RGS |
| CENTRIC | 120.65130, 121.65130, 126.65130CSL, 126.65130CSR, 126.65130SL, 126.65130SR, 127.65130CL, 127.65130CR, 127.65130L, 127.65130R, 227.65130L, 227.65130R, 320.65130, 320.65130F |
| Centric Parts | 120.65130, 121.65130, 126.65130CSL, 126.65130CSR, 126.65130SL, 126.65130SR, 127.65130CL, 127.65130CR, 127.65130L, 127.65130R, 227.65130L, 227.65130R, 320.65130, 320.65130F |
| DURA CORP | BR54170, BR900692 |
| DuraGo | 900692, BR900692 |
| FORD | 9L3Z1125C |
| MAGMA PRODUCTS | PMR205237 |
| MOTORCRAFT | BRR240 |
| Motorcraft | NBRR94 |
| NEWTEK AUTOMOTIVE | 54170 |
| Newtek Automotive USA | 54170 |
| PROMAX | 14-54170 |
| Parts Master | 900692 |
| PowerStop | PSR6621019 |
| QUALIS | 42270 |
| UAP | R65130 |
| Ultra Brake | 54448 |
| WAGNER BRAKE | BD126433 |
| WINHERE | 6621019 |
| WORLDPAC | 1407-274753 |
| WORLDPARTS | WS1-154170 |
| Wagner Brake | BD180282E, BD180282 |
RAYBESTOS 680754R Fits Vehicles
- Ford F-150 (2009)
