(888) 312-8812 Login SignupRAYBESTOS 980781 Raybestos Specialty - Truck Brake Rotor
$11549
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
RAYBESTOS 980781 Part Description
Manufacturer
Product Description

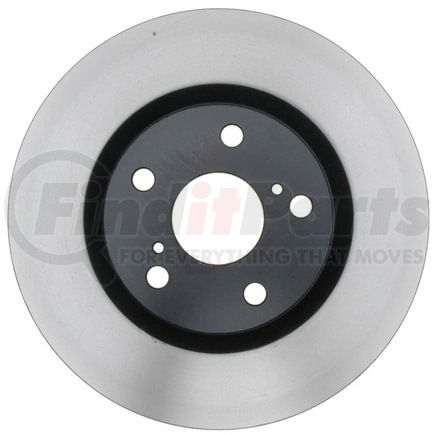

Raybestos Specialty - Truck Brake Rotor
Application Summary
2018-2009 Toyota RAV4 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980781 Specifications
Product Attributes
| Center Hole Diameter | 2.44 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.45 IN |
| Inside Diameter | 189.25 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.577 IN |
| Mounting Bolt Hole Diameter | 14.65 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.655 IN |
| Outside Diameter | 296.05 MM |
| Overall Height | 1.94 IN |
| Overall Height | 49.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352795385 |
RAYBESTOS 980781 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | A6F045 |
| AUTOXTRA | AX900360 |
| Autoxtra | AX900360P |
| BOSCH | 50011503 |
| BRAKEBEST | 50011503, 980781, 980781FZN, 980781R, 980781RGS |
| CENTRIC | 120.44146 |
| DURA CORP | BR31551 |
| MAGMA PRODUCTS | PSR565184 |
| NEWTEK AUTOMOTIVE | 31551 |
| Newtek Automotive USA | 31551 |
| PROMAX | 14-31551 |
| PRONTO | BR900340 |
| TOYOTA | 435120R020 |
| TopNotch | TN980781GEO |
| WINHERE | 6621038 |
RAYBESTOS 980781 Fits Vehicles
- Toyota RAV4 (2009-2018)
RAYBESTOS 980781 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980781 Questions & Answers
No questions yet
Be the first to ask a question about this product!
