RAYBESTOS 680497 Part Description
Manufacturer
Product Description

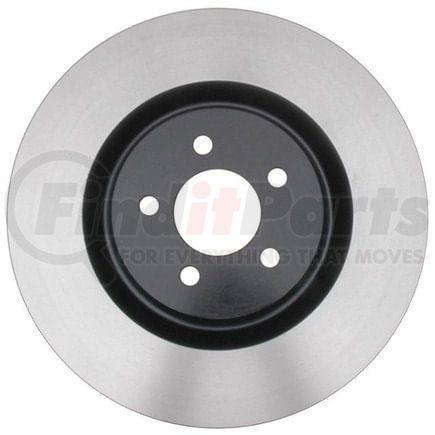

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2007 Ford Mustang Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680497 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.8 IN |
| Inside Diameter | 223.5 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.976 IN |
| Outside Diameter | 355 MM |
| Overall Height | 1.811 IN |
| Overall Height | 46 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352825709 |
RAYBESTOS 680497 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145658, YH145700 |
| AUTOXTRA | AX900918 |
| AUTOZONE | 42253, 42253DG |
| BENDIX | PRT5658 |
| BOSCH | 20010432 |
| BRAKEBEST | 20010432, 680497, 680497RGS |
| Brembo | 09.9781.11 |
| CENTRIC | 120.61089, 120.61089CRY, 121.61089, 126.61089CSL, 126.61089CSR, 126.61089SL, 126.61089SR, 127.61089CL, 127.61089CR, 127.61089L, 127.61089R, 128.61089CL, 128.61089CR, 128.61089L, 128.61089R, 227.61089L, 227.61089R, 320.61089, 320.61089F |
| Centric Parts | 120.61089, 120.61089CRY, 121.61089, 126.61089CSL, 126.61089CSR, 126.61089SL, 126.61089SR, 127.61089CL, 127.61089CR, 127.61089L, 127.61089R, 128.61089CL, 128.61089CR, 128.61089L, 128.61089R, 227.61089L, 227.61089R, 320.61089, 320.61089F |
| DURA CORP | BR54151, BR900918 |
| DuraGo | 900918, BR900918 |
| FORD | 7R3Z1125A |
| MAGMA PRODUCTS | PSR203079 |
| NEOTEK | 1071090GF |
| NEWTEK AUTOMOTIVE | 54151 |
| Newtek Automotive USA | 54151 |
| POWERSTOP | AR8184EVC |
| PROMAX | 14-54151 |
| PRONTO | BR900918 |
| Qualis | 42253 |
| UAP | R61089 |
| WAGNER | BD180417E |
| WAGNER BRAKE | BD126463, BD180417 |
| WINHERE | 6620800 |
| WORLDPAC | 1407-75169 |
| Wagner Brake | BD126463E |
RAYBESTOS 680497 Fits Vehicles
- Ford Mustang (2007-2014)
