RAYBESTOS 680811 Part Description
Manufacturer
Product Description

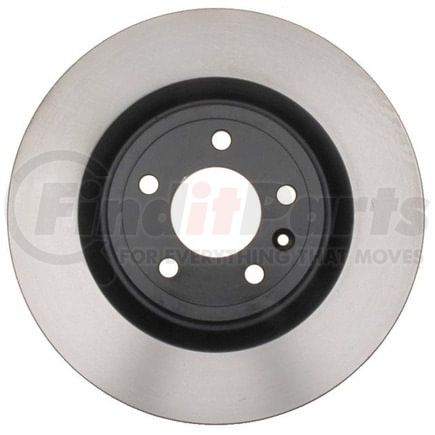

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2011 Ford Mustang Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680811 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.756 IN |
| Inside Diameter | 222.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.585 IN |
| Mounting Bolt Hole Diameter | 14.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.228 IN |
| Outside Diameter | 336 MM |
| Overall Height | 1.89 IN |
| Overall Height | 48 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352838211 |
RAYBESTOS 680811 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317200, YH317200P |
| AUTOXTRA | AX900924 |
| AUTOZONE | 75006, 75006DG |
| BRAKEBEST | 680811, 680811RGS |
| Brembo | 09.D276.11, 09.D276.1X |
| CENTRIC | 120.61098, 121.61098, 126.61098CSL, 126.61098CSR, 126.61098SL, 126.61098SR, 127.61098L, 127.61098R, 128.61098CL, 128.61098CR, 128.61098L, 128.61098R, 227.61098L, 227.61098R, 320.61098 |
| Centric Parts | 120.61098, 121.61098, 126.61098CSL, 126.61098CSR, 126.61098SL, 126.61098SR, 127.61098L, 127.61098R, 128.61098CL, 128.61098CR, 128.61098L, 128.61098R, 227.61098L, 227.61098R, 320.61098 |
| DURA CORP | BR54175, BR900924 |
| DuraGo | BR900924 |
| FORD | BR3Z1125A, CR3Z1125B, CR3Z1125C, DR3Z1125B |
| MAGMA PRODUCTS | PSR203084 |
| Motorcraft | NBRR90 |
| NEOTEK | 1071105GF |
| NEWTEK AUTOMOTIVE | 54175 |
| Newtek Automotive USA | 54175 |
| POWERSTOP | AR85144EVC, AR85144XPR |
| PROMAX | 14-54175 |
| PRONTO | BR900924 |
| Qualis | 42276 |
| UAP | R61098 |
| WAGNER | BD180417E |
| WINHERE | 6621320 |
| WORLDPAC | 1407-317200 |
| Wagner Brake | BD180417E |
RAYBESTOS 680811 Fits Vehicles
- Ford Mustang (2011-2014)
