(888) 312-8812 Login SignupRAYBESTOS 980791R Raybestos R-Line Brake Rotor
MSRP: $88.65
$6549
Save $23.16
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 17
RAYBESTOS 980791R Part Description
Manufacturer
Product Description

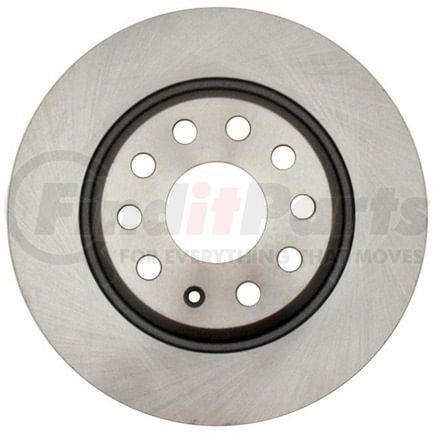

Raybestos R-Line Brake Rotor
Application Summary
2017-2009 Volkswagen Tiguan Rear, 2017-2009 Volkswagen CC Rear, 2010 Volkswagen Jetta Rear, 2013-2009 Audi A3 Rear, 2010-2009 Volkswagen Passat Rear, 2011-2009 Volkswagen Eos Rear, 2015 Audi Q3 Quattro Rear, 2015 Audi Q3 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980791R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.29 IN |
| Inside Diameter | 185.15 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.599 IN |
| Mounting Bolt Hole Diameter | 15.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.469 IN |
| Nominal Thickness | 11.9 MM |
| Outside Diameter | 11.094 IN |
| Outside Diameter | 281.8 MM |
| Overall Height | 1.908 IN |
| Overall Height | 48.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352825785 |
RAYBESTOS 980791R Cross References
RAYBESTOS 980791R Fits Vehicles
- Seat Leon (2006-2012)
- Volkswagen Rabbit (2006-2009)
- Volkswagen R32 (2008)
- Volkswagen Jetta City (2007-2009)
- Volkswagen GTI (2006-2010)
- Volkswagen Golf (2006, 2010-2011)
- Volkswagen Tiguan Limited (2017-2018)
- Audi Q3 Quattro (2015)
- Audi Q3 (2015)
- Audi A3 Quattro (2006-2013)
- Volkswagen Passat CC (2009-2011)
- Volkswagen Jetta (2005-2010)
- Volkswagen Bora (2005-2010)
- Volkswagen CC (2009-2017)
- Audi A3 (2006-2013)
- Volkswagen Tiguan (2009-2018)
- Volkswagen Passat (2006-2010)
- Volkswagen Eos (2007-2011)
