FRAM PH10060FP Part Description
Manufacturer
Product Description
FRAM, PH10060FP, Oil Filter
Features & Benefits
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
- SureGrip(R) technology for easy install and removal

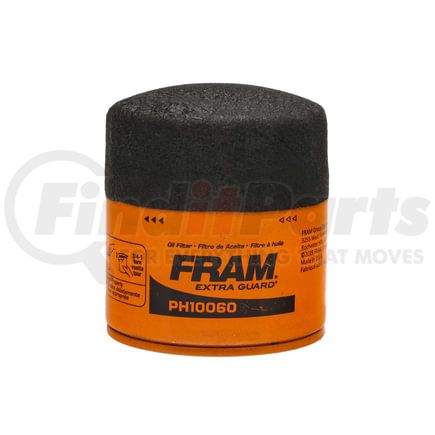

Spin-on Oil Filter
FRAM PH10060FP Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.330 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.191 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.450 IN |
| Gasket Outside Diameter | 2.760 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 310.000 PS |
| Bypass Relief Valve Setting | 9-15 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M22x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| Outside Diameter | 3.000 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Burst Pressure | 310.000 PS |
| Inner Thread Diameter | M22x1.5 MM |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100540065 |
| UNSPSC | 15121501 |
FRAM PH10060FP Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | B7443 |
| Carquest | R84060MP |
| Champion | 47060T |
| Chrysler | 4884900AB, 4892339AA, 4892339BA, 5047769AA, 68197769AA |
| EXXON/MOBIL OIL | M1113, M1113A |
| FRAM | M1-113A, M1-113 |
| General Motors | 12626224, 19303975, 89017342, 89017524 |
| MANN-HUMMEL FILTERS | L12222 |
| MOBIL OIL | M1113A, M1113 |
| NAPA ProSelect Filters | 27064MP |
| PUROLATOR | TL12222, TL12222BP, L12222, PL12222, PBL12222 |
| Parts Master | 67060BP |
| Pennzoil | PZ167BP |
| Quaker State | QS45518BLK |
| Volkswagen | 7B0 115 561C |
| WIX FILTERS | 57060MP, 57060 |
