MONROE 5626 Part Description
Manufacturer
Product Description

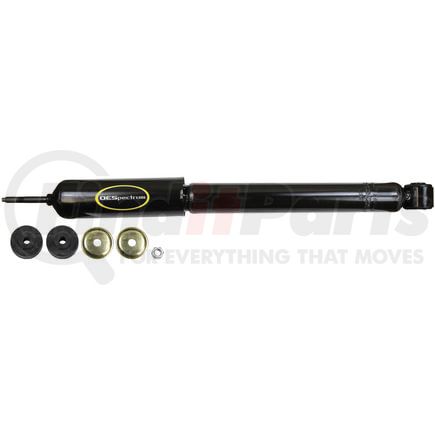

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5626 Specifications
Product Attributes
| Lower Mount Code | LS16 |
| Upper Mount Code | S4 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 17.688 IN |
| Extended Length | 21.5 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | P01136 |
| Travel Length | 3.812 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 449.3 MM |
| Extended Length | 546.1 MM |
| Travel Length | 96.8 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS16 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598059758 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5626 Cross References
| Brand | Part Number |
|---|---|
| 5626ST, GB5Z17682BBPTM | |
| AUTOZONE | TS34-32312B |
| AutoZone | TS3432312B |
| Datsun/Nissan | 562103AN0C, E43023AN0C, E4302EL00A, E4302EL00B, E4302EM01B, E4302EM30C, E4302ZN90A, E43033AN0C, E4303EL00A, E4303EM01A, E4303EM30C, E4303ZN90A, E6200ZN90A, E62103AN0C, E6210EL00A, E6210EM01A, E6210EM30C, E6B10EL00A |
| Duralast | TS3432312B |
| FCS | 341561 |
| FCS AUTO PARTS | 341561 |
| GABRIEL | 70041 |
| KYB | 343465, 348029 |
| KYB AMERICA LLC. | 343465 |
| MasterPro Shocks and Struts | NS128 |
| Monroe Shocks & Struts | 210066 |
| NAPA Shocks | 5626, NS5626 |
| Nissan | 562103AN0C, E6200ZN90A, E6210EL00A, E6210EM01A, E6B10EL00A |
| OEM | E6210EM01A, 562103AN0C, E6B10EL00A, E6200ZN90A, E6210EL00A |
| SENSEN | 32120277 |
| Top Quality | 785626 |
| UNITY AUTOMOTIVE | 255700, 2-255700-001, 4-11353-255700-001 |
MONROE 5626 Fits Vehicles
- Nissan Tiida (2007-2018)
- Nissan Versa (2007-2012)
