RAYBESTOS 781099R2 Part Description
Manufacturer
Product Description

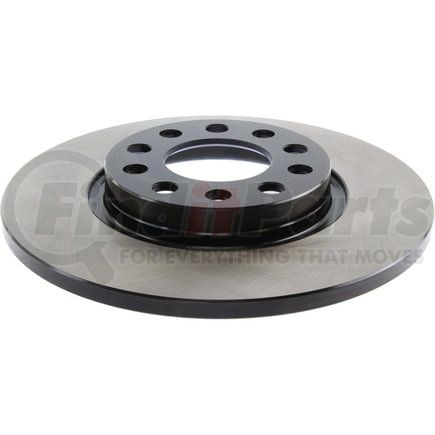

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 781099R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.409 IN |
| Inside Diameter | 6.693 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Outside Diameter | 10.945 IN |
| Overall Height | 1.307 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 70.1 MM |
| Discard Thickness | 10.4 MM |
| Inside Diameter | 170 MM |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Nominal Thickness | 12 MM |
| Outside Diameter | 278 MM |
| Overall Height | 33.2 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447415 |
RAYBESTOS 781099R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH514207P |
| AutoZone | 72123, 72123DG, 72123DL |
| Autopartsource | 491377 |
| Autoxtra | AX901272, AX901272P |
| BrakeBest | 16011617, 712064RGS, 781099, 781099FZN, 781099R |
| Brembo | 08.N282.11 |
| Centric Parts | 120.58013, 120.58013CRY, 121.58013, 126.58013SL, 126.58013SR, 127.58013L, 127.58013R, 128.58013L, 128.58013R, 320.58013 |
| Chrysler | 04779885AB, 4779885AB, 4779885AC |
| Dura Corp | BR901272 |
| DuraGo | BR901272 |
| Dynamic Friction Company | 600-42012, 604-42012 |
| Newtek Automotive USA | R1272 |
| Parts Master | 901272 |
| PowerStop | AR83089EVC |
| Promax | 14-630007 |
| Qualis | 43192 |
| TopNotch | TN781099GEO |
| UAP | 2901272 |
| Ultra Brake | 51302 |
| WORLDPAC | 1407-514207, 1427-731833 |
| Wagner Brake | BD180651, BD180651E |
| Winhere | 6612064 |
RAYBESTOS 781099R2 Fits Vehicles
- Chrysler 200 (2015-2017)
- Jeep Cherokee (2014-2021)
