RAYBESTOS 780037R2 Part Description
Manufacturer
Product Description

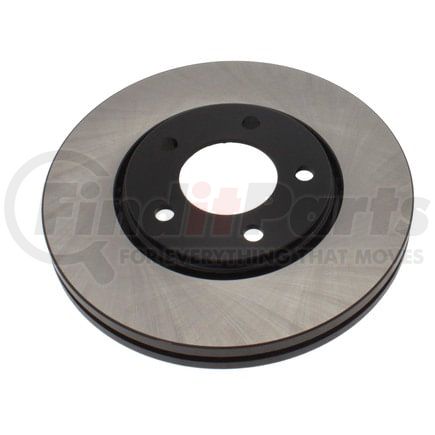

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 780037R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.89 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.996 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.105 IN |
| Outside Diameter | 11.065 IN |
| Overall Height | 1.49 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 73.4 MM |
| Discard Thickness | 25.3 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 281.05 MM |
| Overall Height | 37.85 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447149 |
RAYBESTOS 780037R2 Cross References
RAYBESTOS 780037R2 Fits Vehicles
- Chrysler Voyager (1998, 2001-2008)
- Dodge Caravan (2001-2007)
- Dodge Grand Caravan (2001-2007)
- Chrysler Town & Country (2001-2007)
RAYBESTOS 780037R2 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 780037R2 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
