RAYBESTOS 980360R2 Part Description
Manufacturer
Product Description

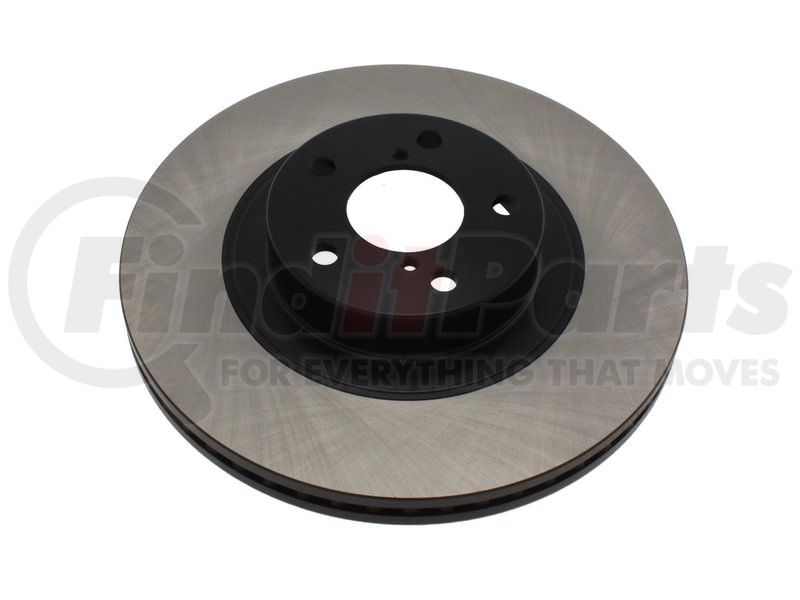

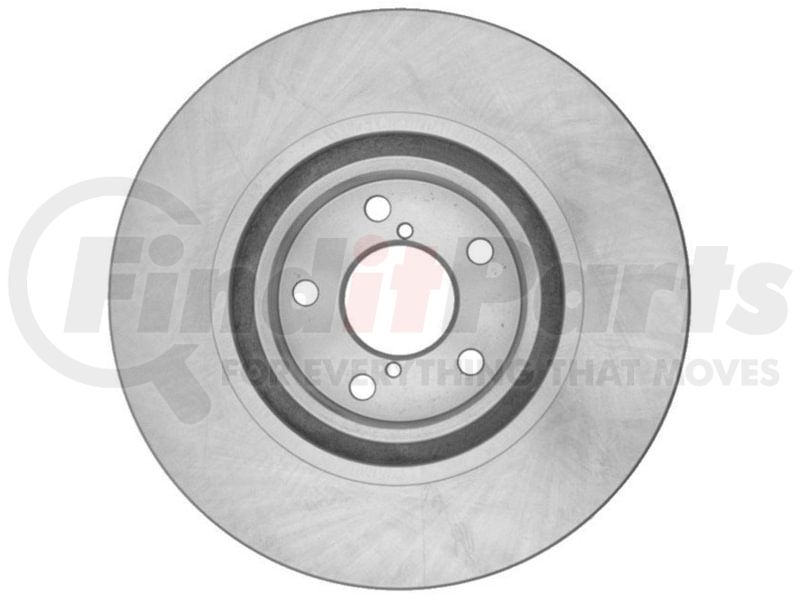

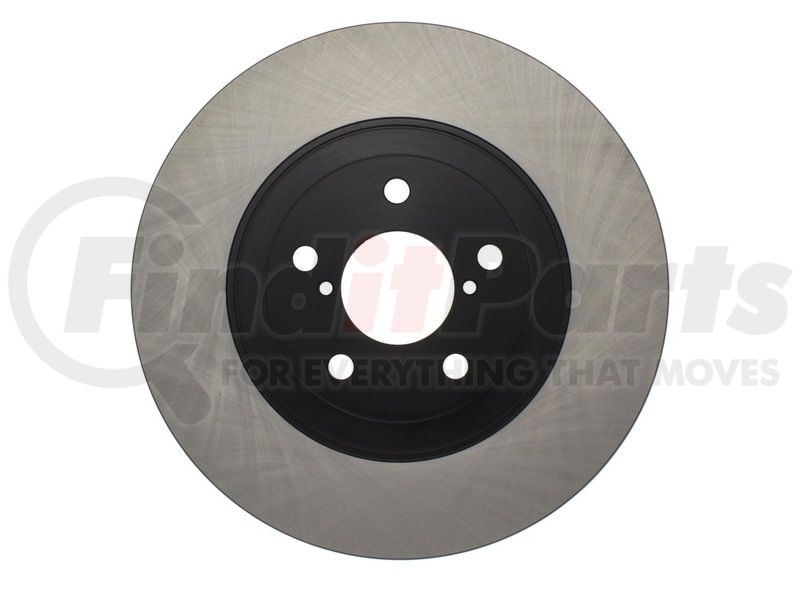

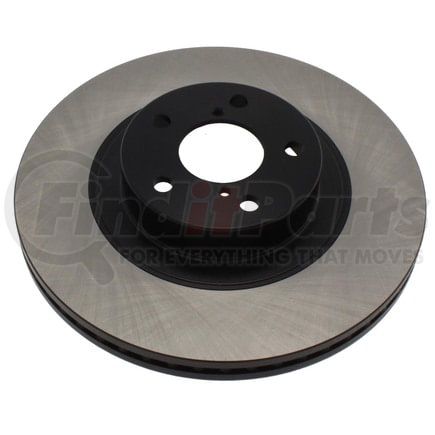

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980360R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.283 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.866 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Outside Diameter | 11.551 IN |
| Overall Height | 2.23 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 58 MM |
| Discard Thickness | 22 MM |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Nominal Thickness | 24 MM |
| Outside Diameter | 293.4 MM |
| Overall Height | 56.65 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213448214 |
RAYBESTOS 980360R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH145657, YH145657C, YH145657P |
| AutoZone | 44306, 44306DG, 44306DL |
| Autoxtra | AX900496, AX900496P |
| Bendix | 145657 |
| Bosch | 48011475 |
| BrakeBest | 48011475, 980360, 980360FZN, 980360PER, 980360R, 980360RGS |
| Casting Numbers | 211732-C |
| Centric Parts | 120.47021, 121.47021, 126.47021CSL, 126.47021CSR, 126.47021SL, 126.47021SR, 127.47021CL, 127.47021CR, 127.47021L, 127.47021R, 128.47021CL, 128.47021CR, 128.47021L, 128.47021R, 227.47021L, 227.47021R, 320.40060, 320.47021 |
| Dura Corp | BR31407, BR900496, BR900496-02 |
| DuraGo | 900496, BR900496, BR90049602, BR900496-02 |
| Dynamic Friction Company | 604-13034 |
| Monroe Brakes | BD126192 |
| Newtek Automotive USA | 31407 |
| PowerStop | JBR1165EVC |
| Promax | 14-31407, 20-31407 |
| Qualis | 44306 |
| Subaru | 26300AG01A, 26300SA000, 26300SA001 |
| TopNotch | TN980360GEO |
| UAP | 2031407, 31407 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51786 |
| WABCO - Archived | PS126192 |
| WORLDPAC | 1407-77108, 1427-731731 |
| Wagner Brake | BD126192, BD126192E |
| Winhere | 6620624 |
RAYBESTOS 980360R2 Fits Vehicles
- Toyota GR86 (2022-2023)
- Toyota 86 (2017-2020)
- Scion FR-S (2013-2016)
- Subaru WRX (2012-2014)
- Subaru BRZ (2013-2020, 2022-2023, 2025)
- Subaru Crosstrek (2016-2017)
- Subaru XV Crosstrek (2013-2015)
- Subaru Baja (2004-2006)
- Subaru Outback (2005-2014)
- Subaru Legacy (2006-2014)
- Subaru Forester (2009-2018)
- Subaru Impreza (2008-2014)
