RAYBESTOS 980757R2 Part Description
Manufacturer
Product Description

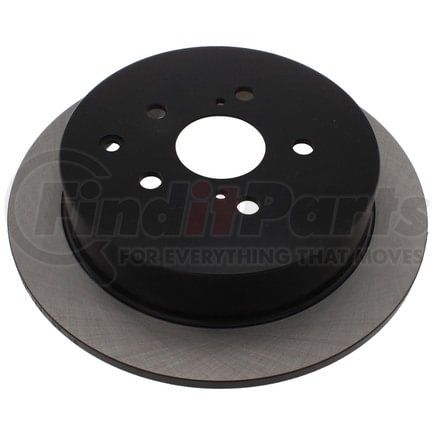

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980757R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.4 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.3 IN |
| Inside Diameter | 9.1 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.4 IN |
| Outside Diameter | 12.2 IN |
| Overall Height | 2.5 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 62.0 MM |
| Discard Thickness | 8.5 MM |
| Inside Diameter | 230.6 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Nominal Thickness | 10.0 MM |
| Outside Diameter | 309.1 MM |
| Overall Height | 62.3 MM |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 309.0 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 5.8 |
| Weight [cntrc] Lbs | 12.7 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213448795 |
RAYBESTOS 980757R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 289821, YH289821, YH289821C, YH289821P |
| AutoZone | 44691, 44691DG, 44691DL |
| Autopartsource | 579006 |
| Autoxtra | AX901006, AX901006P |
| Bendix | PRT6001 |
| Bosch | 50011266, 50011501 |
| BrakeBest | 50011266, 50011501, 980757, 980757FZN, 980757R, 980757RGS |
| Brembo | 08.D281.11 |
| Centric Parts | 120.44166, 120.44166CRY, 121.44166, 126.44166CSL, 126.44166CSR, 126.44166SL, 126.44166SR, 127.44166L, 127.44166R, 128.44166L, 128.44166R, 320.44166, 321.44166 |
| Dura Corp | BR31544, BR901006, BR90100602 |
| DuraGo | BR901006, BR90100602, BR901006-02 |
| Dynamic Friction Company | 604-76141 |
| Monroe Brakes | BD180361 |
| Newtek Automotive USA | 31544 |
| Omnicraft | QBRR76 |
| PowerStop | JBR1389EVC |
| Promax | 14-31544 |
| Qualis | 44691 |
| TopNotch | TN980757GEO |
| Toyota | 424310E020, 4243148070 |
| UAP | 2901006, R44166 |
| Ultra Brake | TO-6184 |
| WORLDPAC | 1407-289821, 1427-731730 |
| Wagner Brake | BD180361, BD180361E |
| Winhere | 661907 |
RAYBESTOS 980757R2 Fits Vehicles
- Toyota Highlander (2014-2019)
- Lexus RX450h (2010-2015)
- Toyota Sienna (2011-2020)
- Lexus RX350 (2010-2015)
