(888) 312-8812 Login SignupRAYBESTOS 980962R2 Raybestos R-Line+ Brake Rotor
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980962R2 Part Description
Manufacturer
Product Description

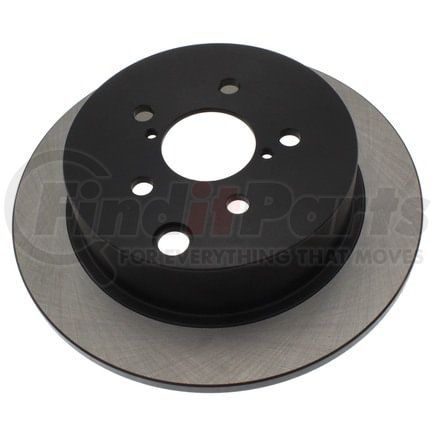

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980962R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.28 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.335 IN |
| Inside Diameter | 7.811 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Nominal Thickness | 0.394 IN |
| Outside Diameter | 10.78 IN |
| Overall Height | 2.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 57.9 MM |
| Discard Thickness | 8.5 MM |
| Inside Diameter | 198.4 MM |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Nominal Thickness | 10 MM |
| Outside Diameter | 273.8 MM |
| Overall Height | 61.2 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213448788 |
RAYBESTOS 980962R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH421754C, YH421754P |
| AutoZone | 79504, 79504DG, 79504DL |
| Autopartsource | 577385 |
| Autoxtra | AX901128, AX901128P |
| Bendix | PRT6157 |
| BrakeBest | 980962R, 980962RGS |
| Brembo | 08.C661.11 |
| Centric Parts | 120.47033, 120.47033CRY, 121.47033, 126.47033CSL, 126.47033CSR, 126.47033SL, 126.47033SR, 127.47033L, 127.47033R, 128.47033CL, 128.47033CR, 128.47033L, 128.47033R, 320.47033, 320.47033F, 321.47033 |
| Dura Corp | BR901128, BR90112802 |
| DuraGo | BR901128, BR90112802, BR901128-02 |
| Dynamic Friction Company | 600-13025, 604-13025 |
| NAPA BRAKES | SDK6770 |
| Newtek Automotive USA | R1128 |
| PowerStop | JBR1548EVC |
| Qualis | 44750 |
| Subaru | 26700FJ000 |
| TopNotch | TN980962GEO |
| UAP | R47033 |
| WORLDPAC | 1407-421754, 1427-613645 |
| Wagner Brake | BD180515, BD180515E, SB980962 |
| Winhere | 661971 |
RAYBESTOS 980962R2 Fits Vehicles
- Subaru Crosstrek (2016-2023)
- Subaru XV Crosstrek (2013-2015)
- Subaru Forester (2014-2018)
- Subaru Impreza (2012-2023)
