RAYBESTOS 981055R2 Part Description
Manufacturer
Product Description

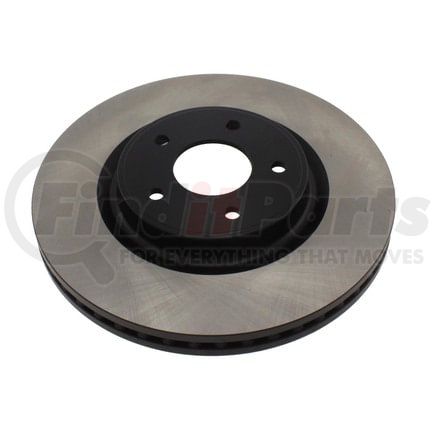

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 981055R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Inside Diameter | 8.11 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.504 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Outside Diameter | 12.598 IN |
| Overall Height | 1.94 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68.05 MM |
| Discard Thickness | 26 MM |
| Inside Diameter | 206 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 12.8 MM |
| Nominal Thickness | 28 MM |
| Outside Diameter | 320 MM |
| Overall Height | 49.3 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213449181 |
RAYBESTOS 981055R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH477843, YH477843C, YH477843P |
| AutoZone | 76018, 76018DG |
| Autopartsource | 476064 |
| Autoxtra | AX901204, AX901204P |
| Beck/Arnley | 083-3566 |
| Bendix | PRT6232 |
| BrakeBest | 921552RGS, 981055, 981055FZN, 981055R |
| Centric Parts | 120.42120, 120.42120CRY, 121.42120, 125.42120, 126.42120CSL, 126.42120CSR, 126.42120SL, 126.42120SR, 127.42120L, 127.42120R, 128.42120L, 128.42120R, 320.42120 |
| Dura Corp | BR901204 |
| DuraGo | BR901204, BR90120402, BR901204-02 |
| Dynamic Friction Company | 600-67105 |
| Eurorotor | NI-4043 |
| Nissan | 402063JA0A, 402063JA0C |
| PowerStop | JBR1559EVC |
| Promax | 14-610000 |
| Qualis | 44765 |
| TopNotch | TN981055GEO |
| UAP | R42120 |
| Ultra Brake | NI-4043 |
| WORLDPAC | 1407-477843, 1427-595536 |
| Wagner Brake | BD180592, BD180592E |
| Winhere | 6621552 |
RAYBESTOS 981055R2 Fits Vehicles
- Nissan Z (2023)
- Nissan 370Z (2020)
- INFINITI QX50 (2016-2017)
- INFINITI Q60 (2017-2022)
- INFINITI Q50 (2014-2023)
- Nissan Murano (2015-2024)
- INFINITI QX60 (2014-2021)
- Nissan Pathfinder (2013-2021)
- INFINITI JX35 (2013)
