RAYBESTOS 981503R2 Part Description
Manufacturer
Product Description

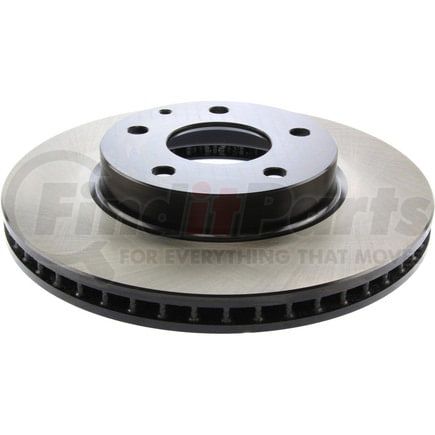

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 981503R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 IN |
| Inside Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.524 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Outside Diameter | 11.016 IN |
| Overall Height | 2.028 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68 MM |
| Discard Thickness | 23 MM |
| Inside Diameter | 170 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 13.3 MM |
| Nominal Thickness | 25 MM |
| Outside Diameter | 279.8 MM |
| Overall Height | 51.5 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213449273 |
RAYBESTOS 981503R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH507589P |
| AutoZone | 71109, 77109DL, 77109DG |
| Autopartsource | 474741 |
| Autoxtra | AX901286 |
| Bendix | PRT6259 |
| BrakeBest | 34011591, 921659RGS, 981503, 981503FZN, 981503R |
| Brembo | 09.C651.11, 09.C651.1X |
| Centric Parts | 120.45088, 121.45088, 126.45088SL, 126.45088SR, 127.45088L, 127.45088R, 320.45088 |
| Dura Corp | BR901286 |
| DuraGo | BR901286 |
| Dynamic Friction Company | 604-80053 |
| Eurorotor | MA-8030 |
| Mazda | B45A33251A, BJS733251A, BPY133251 |
| Newtek Automotive USA | R1286 |
| PowerStop | JBR1599EVC |
| Promax | 14-610012 |
| Qualis | 44790 |
| TopNotch | TN981503GEO |
| Ultra Brake | MA-8030 |
| WORLDPAC | 1407-507589, 1427-699391 |
| Wagner Brake | BD180805E, BD180815E |
| Winhere | 6621659, 6621661 |
RAYBESTOS 981503R2 Fits Vehicles
- Mazda 3 Sport (2014-2016)
- Mazda CX-3 (2016-2022)
- Mazda 3 (2014-2018)
