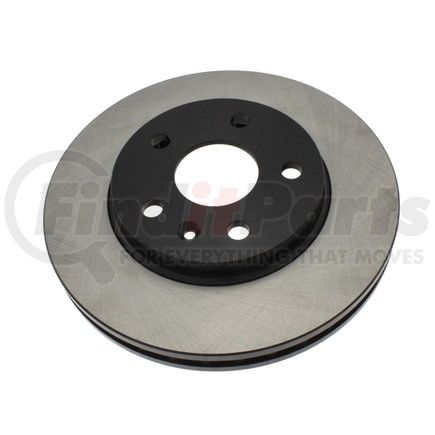

(888) 312-8812 Login SignupRAYBESTOS 580839R2 Raybestos R-Line+ Brake Rotor
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 580839R2 Part Description
Manufacturer
Product Description
Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 580839R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.66 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.063 IN |
| Inside Diameter | 7.323 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Outside Diameter | 11.654 IN |
| Overall Height | 2.012 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 67.55 MM |
| Discard Thickness | 27 MM |
| Inside Diameter | 186 MM |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Nominal Thickness | 30 MM |
| Outside Diameter | 296 MM |
| Overall Height | 51.1 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213446036 |
RAYBESTOS 580839R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH317660, YH317660C, YH317660P |
| AutoZone | 72019, 72019DG |
| Autopartsource | 493137 |
| Autoxtra | AX900914, AX900914P |
| Bendix | PRT6033 |
| Bosch | 25011439 |
| BrakeBest | 25011439, 580839R, 580839RGS |
| Brembo | 09.A969.11 |
| Centric Parts | 120.62110, 121.62110, 126.62110SL, 126.62110SR, 127.62110L, 127.62110R, 320.62110 |
| Dura Corp | BR900914 |
| DuraGo | 900914, BR900914, BR900914-02 |
| General Motors | 13501296, 13501319, 23118529 |
| NAPA BRAKES | SDK6145 |
| Newtek Automotive USA | 55184 |
| PowerStop | AR82134EVC |
| Promax | 14-55184 |
| Qualis | 41265 |
| TopNotch | TN580839GEO |
| WORLDPAC | 1407-317660, 1427-712952 |
| Wagner Brake | BD180437, BD180437E, SB580839 |
| Winhere | 6620982 |
| Worldparts | WS1-155184 |
RAYBESTOS 580839R2 Fits Vehicles
- Saab 9-5 (2011)
- Chevrolet Malibu Limited (2016)
- Buick LaCrosse (2012-2016)
- Chevrolet Malibu (2013-2016)
- Buick Regal (2011-2017)
RAYBESTOS 580839R2 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 580839R2 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 580839R2 Questions & Answers
No questions yet
Be the first to ask a question about this product!
