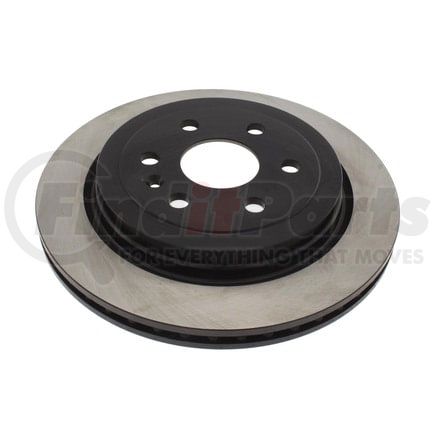

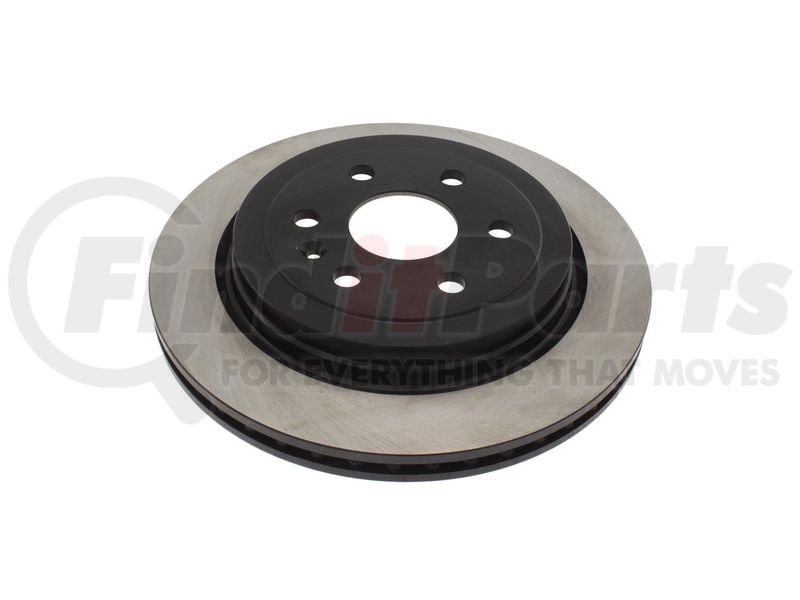

RAYBESTOS 580759R2 Raybestos R-Line+ Brake Rotor

580759R2 by RAYBESTOS - Raybestos R-Line+ Brake Rotor
RAYBESTOS
Tap to view 5 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 580759R2 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line+ Brake Rotor

Features & Benefits

  • Painted Hat and Edges
  • Top-Notch Surface Finish
  • Superior surface finish for consistent braking.
  • OE Vane Design
  • OE vane design and plate thickness for heat capacity and strength.
  • Advanced Metallurgy
  • Advanced metallurgy for structural strength and heat transfer.
  • Low Initial Lateral Run-out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
  • Precision Balance
  • Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor

RAYBESTOS 580759R2 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.65 IN
Conventional Or Drum-In-Hat Type Rotor Drum-In-Hat
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 0.847 IN
Inside Diameter 9.075 IN
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.72 IN
Mounting Bolt Hole Diameter 0.625 IN
Mounting Bolt Hole Quantity 6
Nominal Thickness 0.906 IN
Outside Diameter 12.402 IN
Overall Height 1.89 IN
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 6
Surface Type Smooth
Harmonize Code 8708.30.5030
Salability Restrictions No
UNSPSC Code 25171715
Center Hole Diameter 67.3 MM
Discard Thickness 21.5 MM
Inside Diameter 230.5 MM
Mounting Bolt Hole Circle Diameter 119.9 MM
Mounting Bolt Hole Diameter 15.9 MM
Nominal Thickness 23 MM
Outside Diameter 315 MM
Overall Height 48 MM

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00887213446050

RAYBESTOS 580759R2 Cross References

BrandPart Number
Advance Auto PartsYH290682, YH290682C, YH290682P
AutoZone72017, 72017DG
Autopartsource493114
AutoxtraAX900842
BendixPRT5972
BrakeBest580759, 580759R, 580759RGS
Centric Parts120.62123, 121.62123, 126.62123SL, 126.62123SR, 127.62123L, 127.62123R, 320.62123
Dura CorpBR55176, BR900842
DuraGo900842, BR900842
General Motors13501317
Newtek Automotive USA55176
PowerStopAR82143EVC
Promax14-55176
Qualis41259
TopNotchTN580759GEO
UAP2055176, 55176
WORLDPAC1407-290682
Wagner Brake55176, BD180463, BD180463E
Winhere6621225
WorldpartsWS1-155176

RAYBESTOS 580759R2 Fits Vehicles

  • Saab 9-4X (2011)
  • Cadillac SRX (2010-2016)
