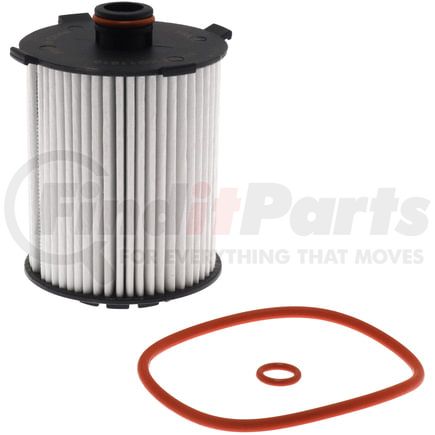

FRAM XG11816 Part Description
Manufacturer
Product Description
FRAM, XG11816, Oil Filter
Features & Benefits
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
Cartridge Oil Filter
FRAM XG11816 Specifications
Product Attributes
| Filter Media Material | Synthetic |
| Height | 4.134 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Ultimate |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.614 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.945 IN |
| O-ring (1) Outside Diameter | 1.051 IN |
| O-ring (1) Thickness | 0.106 IN |
| O-ring (2) Inside Diameter | 0.61 IN |
| O-ring (2) Outside Diameter | 0.712 IN |
| O-ring (2) Thickness | 0.102 IN |
| O-ring (3) Inside Diameter | 0.394 IN |
| O-ring (3) Outside Diameter | 0.492 IN |
| O-ring (3) Thickness | 0.098 IN |
| O-ring Inside Diameter | 3.287 IN |
| O-ring Outside Diameter | 3.446 IN |
| O-ring Thickness | 0.159 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.854 in |
| Outer Diameter Top | 3.248 in |
| Replacable Filter | Yes |
| Reusable | No |
| Torque Nut | No |
| Bottom Inside Diameter | 1.614 IN |
| Grade Type | Premium |
| Outside Diameter Top | 3.248 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100579294 |
| UNSPSC | 15121501 |
FRAM XG11816 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 041-0887 |
| Carquest | 94716, 95241 |
| Carquest Premium Filters | 94716, 95241 |
| Champ | P1023 |
| FRAM Drive | FD11816 |
| FRAM Extra Guard | CH11816 |
| FRAM Ultra Synthetic | XG11816 |
| LUBER-FINER | P1023 |
| NAPA Gold Filters | 100241 |
| Parts Master | WL610241 |
| Premium Guard | PG9983EX |
| Premium Guard Extended Life | PG9983EX |
| Purolator | L21350 |
| Purolator BOSS | PBL21350 |
| Purolator Classic | L21350 |
| STP Filters | S45012XL |
| Service Champ | WP1023 |
| Valvoline | VO-174 |
| Volvo | 31372212, 31372214, 32140029 |
| Warner | WP1023 |
| Warner Filters | WP1023 |
| Wix | WL10241 |
FRAM XG11816 Fits Vehicles
- Volvo XC40 (2019-2025)
- Volvo V90 (2018-2021)
- Volvo V90 Cross Country (2017-2025)
- Volvo V60 Cross Country (2017-2018, 2020-2025)
- Volvo S60 Cross Country (2017-2018)
- Volvo S90 (2017-2025)
- Volvo XC90 (2016-2026)
- Volvo XC70 (2015-2016)
- Volvo S80 (2015-2016)
- Volvo XC60 (2015-2025)
- Volvo S60 (2015-2025)
- Volvo V60 (2015-2025)
- Suzuki Aerio (2002)
FRAM XG11816 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM XG11816 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
