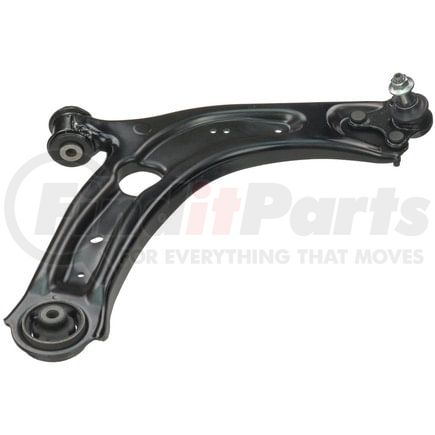

(888) 312-8812 Login SignupDELPHI TC3441 Control Arm and Ball Joint Assembly
Tap to view 2 more
$9499
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
DELPHI TC3441 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control Arm and Ball Joint Assembly
DELPHI TC3441 Specifications
Product Attributes
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 66.00 MM |
| Ball Joint Stud Length | 2.598 IN |
| Control Arm Maximum Length | 335.00 MM |
| Control Arm Maximum Length | 13.189 IN |
| Mounting Hole Diameter | 12.30 MM |
| Mounting Hole Diameter | 0.484 IN |
| Bushing Inside Diameter | 13.00 MM |
| Bushing Length | 50.00 MM |
| Bushing Length | 1.969 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Distance Between Bushings | 313.40 MM |
| Thread Diameter | 0.472 IN |
| Distance Between Bushings | 12.339 IN |
| Bushing Inside Diameter | 0.512 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604341759 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3441 Cross References
| Brand | Part Number |
|---|---|
| CORTECO | 49397709 |
| DORMAN | CB43404PR, CB43404 |
| MEVOTECH | CMS701167 |
| MEYLE | 1160500196 |
| N/A | CB43404, CB43404PR, 3Q0 407 152 E, 3Q0407154B, CMS701167 |
| VAICO | V105001 |
DELPHI TC3441 Fits Vehicles
- Volkswagen Arteon (2019)
- Audi Q3 (2018-2021)
- Volkswagen Tiguan (2016-2021)
- Volkswagen Passat (2014-2018)
DELPHI TC3441 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC3441 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
