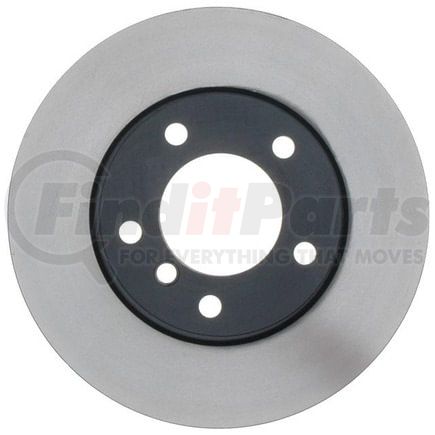

RAYBESTOS 96393 Raybestos Specialty - Street Performance Brake Rotor

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 96393 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 96393 Specifications

Product Attributes

Center Hole Diameter 3.113 IN
Center Hole Diameter 79.05 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.803 IN
Discard Thickness 20.4 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.724 IN
Mounting Bolt Hole Circle Diameter 120 MM
Mounting Bolt Hole Diameter 0.575 IN
Mounting Bolt Hole Diameter 14.6 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.86 IN
Nominal Thickness 21.85 MM
Outside Diameter 11.26 IN
Outside Diameter 286 MM
Overall Height 2.035 IN
Overall Height 51.7 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00030999611109

RAYBESTOS 96393 Cross References

BrandPart Number
030999611109, 120.34029
ATE BRAKE PRODUCTS422115, SP22115
AUTOPART INTERNATIONAL78650
AUTOSPECIALTYEBR419, EBR419E
AUTOXTRAAX34064
BECK/ARNLEY083-2550
BMW34111162288, 34111160674
BOSCHRBR34004
BRAKE HEADQUARTERSBR05157
BRAKEBEST96393
BREMBO09.5390.30
CALIFORNIA DRUM & ROTOR125277
CENTRIC121.34029, 125.34029
CENTURY9826
Casting Numbers211029-C, 340641
DELPHIRB505
DURA CORPBR34004
EIS BRAKESD17727
EUROROTORBM725
GREN402102
GUARDIAN52-125277
MAGMA PRODUCTSPSR123032
MCI3847Q
MIDASBR1849
MIGHTY DISTRIBUTING SYSTEM34004
NEWTEK AUTOMOTIVE34004
Newtek Automotive USA34004
PROMAX14-34004
PRONTOBR34064
QUALIS34004
QUALITEE INTERNATIONAL64-12-280
QUALITY BRANDQ321
STANDARD ROTORS AND DRUMS34004
THE UNIVERSAL GROUP111123
TRUSTAR412280, R12280
Universal111123
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX50964
WABCOPS125277
WABCO - ArchivedPS125277
WAGNERBD125277
WINHERE662407, YH2052
WORLDPAC1407-78650
