RAYBESTOS 8522 Part Description
Manufacturer
Product Description

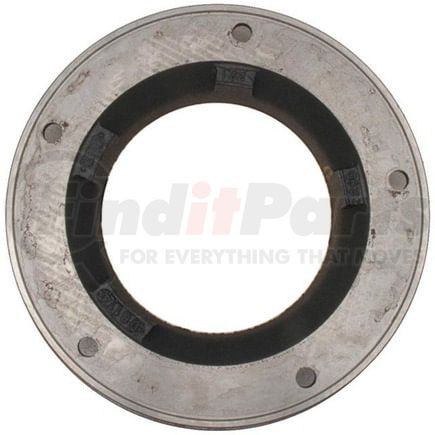

Raybestos Specialty - Truck Brake Rotor
Application Summary
1982-1980 International S1624 Rear, 1992-1987 International 1452SC Rear, 1989-1987 International M1400 Metro II Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 8522 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 13.752 IN |
| Center Hole Diameter | 349.3 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 12 IN |
| Mounting Bolt Hole Circle Diameter | 304.8 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.455 IN |
| Nominal Thickness | 36.95 MM |
| Outside Diameter | 15 IN |
| Outside Diameter | 381 MM |
| Overall Height | 5.235 IN |
| Overall Height | 132.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999757319 |
RAYBESTOS 8522 Cross References
| Brand | Part Number |
|---|---|
| 25147124, 30999757319 | |
| ADVANCE AUTO PARTS | YH141629, YH141629C, YH141629P |
| AUTOZONE | 5612, 5612DG |
| BENDIX | 141629, R444240 |
| BRAKEBEST | 8522, 8522RGS |
| CALIFORNIA DRUM & ROTOR | 125381 |
| CENTRIC | 120.83009, 121.83009 |
| Centric Parts | 120.83009, 121.83009 |
| DELPHI | RB622 |
| DURA CORP | BR5612 |
| EUCLID | E-4240 |
| INTERNATIONAL HARVESTER (IHC) | 589868C1 |
| MERITOR | R444240 |
| MIGHTY DISTRIBUTING SYSTEM | 5612 |
| QUALIS | 5612 |
| UAP | 5612 |
| WAGNER | BD126403 |
| WAGNER BRAKE | BD125381 |
RAYBESTOS 8522 Fits Vehicles
- International 1854 (1983-1989)
- International 1824 (1983-1984)
- International 1654 (1983-1989)
- International F1924 (1979-1981)
- International 1955 (1979-1982)
- International 1954 (1979-1982)
- International 1925 S (1979-1982)
- International 1924 S (1979-1982)
- International 1754 (1979-1989)
- International 1724 (1979-1985)
- International F1954 (1979-1982, 1986-1989)
- International S1955 (1981-1989)
- International S1954 (1981-1989)
- International S1925 (1980-1982)
- International S1924 (1980-1982)
- International S1854 (1983-1989)
- International S1853FC (1987-1989)
- International S1853 (1983-1989)
- International S1824 (1983-1985)
- International S1754 (1981-1989)
- International S1753 (1984-1989)
- International S1724 (1980-1984)
- International S1723 (1980-1985)
- International S1654LP (1988-1989)
- International S1654 (1984-1989)
- International 1652UPS (1990-1991, 1993, 1995-1997)
- International 1652SC (1986-1998)
- International S1624 (1980-1982)
- International M1400 Metro II (1987-1989)
- International 1452SC (1987-1992)
