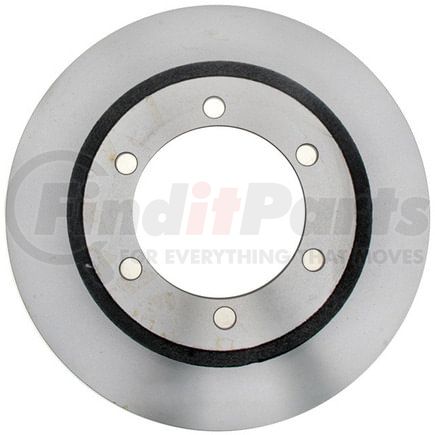

(888) 312-8812 Login SignupRAYBESTOS 8534 Raybestos Specialty - Truck Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 8534 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
1991-1980 Chevrolet B60 Front, 1991-1980 Chevrolet B60 Rear, 1991-1980 GMC B6000 Front, 1991-1980 GMC B6000 Rear, 1989-1988 GMC C7000 Front, 1989-1988 GMC C7000 Rear, 1989-1988 Chevrolet C70 Front, 1989-1988 Chevrolet C70 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 8534 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.404 IN |
| Center Hole Diameter | 137.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.225 IN |
| Discard Thickness | 31.1 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Diameter | 6.75 IN |
| Mounting Bolt Hole Diameter | 171.45 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.345 IN |
| Nominal Thickness | 34.15 MM |
| Outside Diameter | 14.75 IN |
| Outside Diameter | 374.65 MM |
| Overall Height | 3.8 IN |
| Overall Height | 96.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730041216 |
RAYBESTOS 8534 Cross References
| Brand | Part Number |
|---|---|
| 600-5676, 747730041216 | |
| ACDELCO | 177-818 |
| ADVANCE AUTO PARTS | 141585, YH141585 |
| AMERICAN REMANUFACTURED | 89-52004 |
| AUTOSPECIALTY | AR9004, AR9004E |
| AUTOXTRA | AX5588 |
| AUTOZONE | 5588 |
| BENDIX | 141585 |
| BRAKE HEADQUARTERS | BR55880 |
| BRAKEBEST | 8534, 8534R, 8534RGS, BD125358 |
| CALIFORNIA DRUM & ROTOR | 125358 |
| CENTRIC | 120.80004, 121.80004 |
| Casting Numbers | 210581-C, 23-122688, 325876 |
| Centric Parts | 120.80004, 121.80004 |
| DAYTON WALTHER | 23122688 |
| DELPHI | RB677 |
| DURA CORP | BR5588 |
| DuraGo | BR5588 |
| EIS BRAKES | D17650 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12685009 |
| GM | 15515789 |
| GREN | 663602 |
| General Motors | 15515789 |
| MIGHTY DISTRIBUTING SYSTEM | 5588 |
| NEWTEK AUTOMOTIVE | 5588 |
| Newtek Automotive USA | 5588 |
| QUALIS | 5588 |
| Qualis | 55000 |
| STANDARD ROTORS AND DRUMS | 5588 |
| THE UNIVERSAL GROUP | 101880 |
| UAP | 5588 |
| Universal | 101880 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50586 |
| WAGNER | BD125358 |
| WAGNER BRAKE | BD125358 |
| WEBB | 54104P |
| WINHERE | YH2600 |
RAYBESTOS 8534 Fits Vehicles
- GMC P6000 (1983-1990, 1992-1996)
- Spartan Motors WC2000 (1993-1994)
- Spartan Motors EC2000 (1993-1996)
- GMC P60 (1983-1990)
- Chevrolet P60 (1983-1990)
- Chevrolet P40 (1988)
- GMC P4500 (1988-1990)
- GMC B6000 (1980-1991)
- Chevrolet B60 (1980-1991)
- Chevrolet C5500 Kodiak (1990)
- GMC C7000 (1988-1990)
- GMC C6000 (1988-1990)
- Chevrolet C70 (1988-1990)
- Chevrolet C60 (1988-1990)
- GMC C5000 (1983-1990)
- Chevrolet C50 (1983-1990)
