(888) 312-8812 Login SignupRAYBESTOS 980310 Raybestos Specialty - Truck Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980310 Part Description
Manufacturer
Product Description

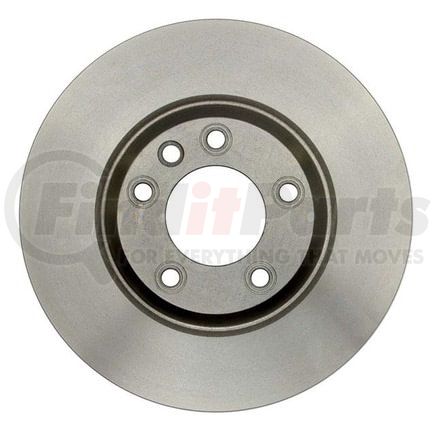

Raybestos Specialty - Truck Brake Rotor
Application Summary
2015-2007 Audi Q7 Front Right, 2013-2008,2006-2003 Porsche Cayenne Front Right, 2010-2004 Volkswagen Touareg Front Right
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980310 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.347 IN |
| Center Hole Diameter | 85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.601 IN |
| Mounting Bolt Hole Diameter | 15.25 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.339 IN |
| Nominal Thickness | 34 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 2.697 IN |
| Overall Height | 68.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.601 IN |
| Stud/Lug Hole Diameter | 15.25 MM |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352269589 |
RAYBESTOS 980310 Cross References
RAYBESTOS 980310 Fits Vehicles
- Audi Q7 (2007-2015)
- Volkswagen Touareg (2004-2010)
- Porsche Cayenne (2003-2006, 2008-2018)
