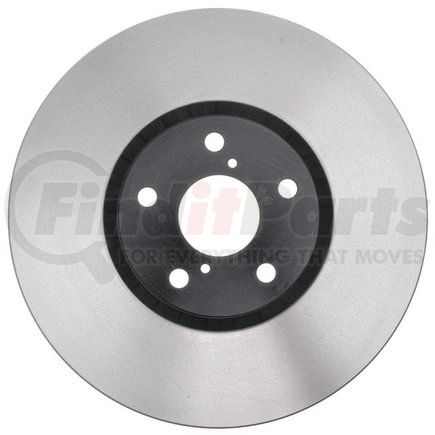

RAYBESTOS 980493 Raybestos Specialty - Street Performance Brake Rotor

$189.49

Limited availability at this price!

1 Day Lead Time

Get it by Thursday, Mar 5
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
This item will ship about 1 day after the date of purchase

RAYBESTOS 980493 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2020-2006 Lexus IS350 Front Left, 2020-2018 Lexus IS300 Front Left, 2017-2016 Lexus IS200t Front Left, 2011,2008-2007 Lexus GS350 Front Left, 2007-2006 Lexus GS430 Front Left, 2011,2008-2007 Lexus GS450h Front Left

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980493 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.441 IN
Center Hole Diameter 62 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.063 IN
Discard Thickness 27 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.566 IN
Mounting Bolt Hole Diameter 14.4 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.181 IN
Nominal Thickness 30 MM
Outside Diameter 13.15 IN
Outside Diameter 334 MM
Overall Height 1.996 IN
Overall Height 50.7 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352641682

RAYBESTOS 980493 Cross References

RAYBESTOS 980493 Fits Vehicles

  • Lexus IS300 (2018-2020)
  • Lexus IS200t (2016-2017)
  • Lexus GS460 (2008-2011)
  • Lexus GS350 (2007-2011)
  • Lexus GS450h (2007-2011)
  • Lexus IS350 (2006-2021)
  • Lexus GS430 (2006-2007)
