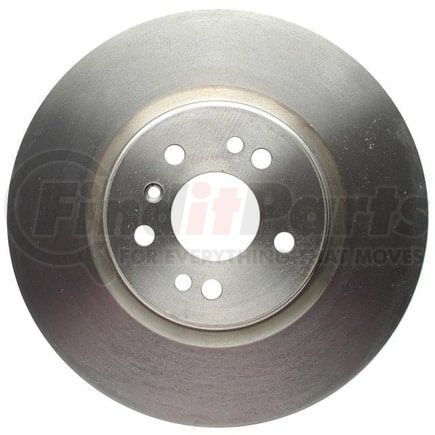

RAYBESTOS 980427 Raybestos Specialty - Truck Brake Rotor

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980427 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2011-2006 Mercedes-Benz ML350 Front, 2012,2010-2006 Mercedes-Benz R350 Front, 2009-2007 Mercedes-Benz ML320 Front, 2007-2006 Mercedes-Benz ML500 Front, 2007-2006 Mercedes-Benz R500 Front, 2009-2007 Mercedes-Benz R320 Front

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 980427 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.638 IN
Center Hole Diameter 67 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.157 IN
Discard Thickness 29.4 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.409 IN
Mounting Bolt Hole Circle Diameter 112 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.26 IN
Nominal Thickness 32 MM
Outside Diameter 12.992 IN
Outside Diameter 330 MM
Overall Height 2.146 IN
Overall Height 54.5 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) MX
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352378113

RAYBESTOS 980427 Cross References

RAYBESTOS 980427 Fits Vehicles

  • Mercedes-Benz ML550 (2008-2011)
  • Mercedes-Benz GL550 (2008)
  • Mercedes-Benz GL450 (2007-2008)
  • Mercedes-Benz GL320 (2007-2008)
  • Mercedes-Benz ML450 (2010-2011)
  • Mercedes-Benz R320 (2007-2009)
  • Mercedes-Benz ML320 (2007-2009)
  • Mercedes-Benz R500 (2006-2007)
  • Mercedes-Benz R350 (2006-2012)
  • Mercedes-Benz ML350 (2006-2011)
  • Mercedes-Benz ML500 (2006-2007)
