RAYBESTOS ATD225M Part Description
Manufacturer
Product Description

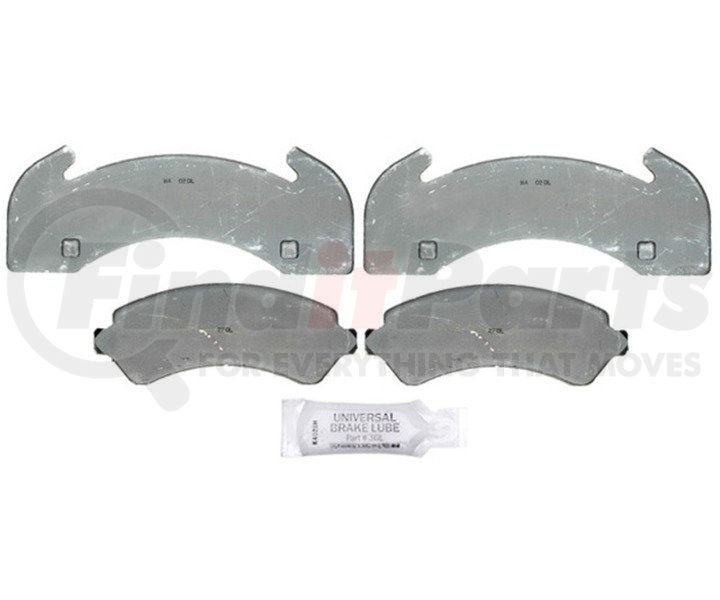

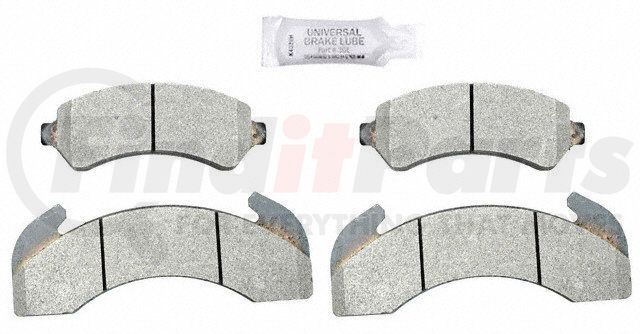

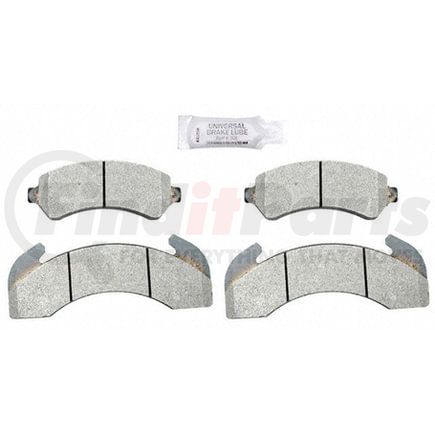

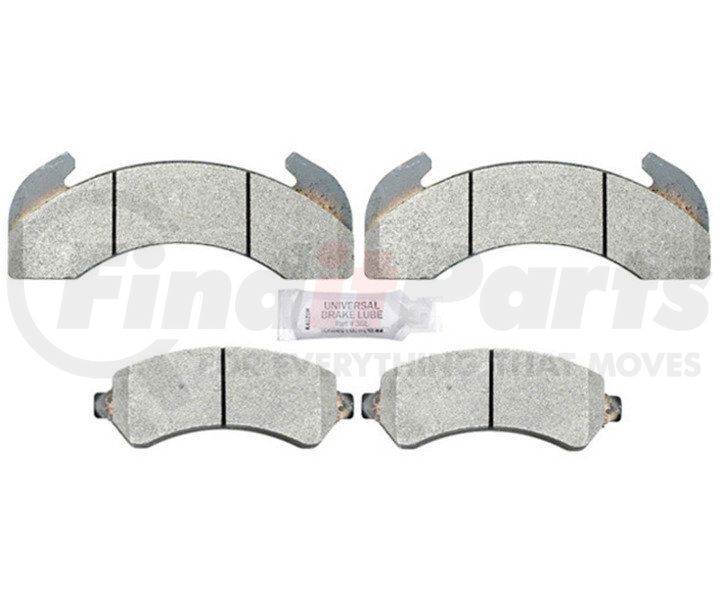

Raybestos AT Overstock Metallic Brake Pad Set
Application Summary
1997-1990 International 4900 Front, 1997-1990 International 4900 Rear, 1997-1990 International 3800 Front, 1997-1990 International 3800 Rear, 1997-1990 International 4700 Front, 1997-1990 International 4700 Rear
RAYBESTOS ATD225M Specifications
Product Attributes
| Chamfered Edges | Yes |
| FMSI Number | D225-L7142 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Slotted |
| Inner Pad Height | 3.150 in |
| Inner Pad Overall Thickness | 1.130 IN |
| Inner Pad Width | 8.070 in |
| Mounting Hardware Included | No |
| Outer Pad Height | 3.150 IN |
| Outer Pad Overall Thickness | 0.800 in |
| Outer Pad Width | 8.070 IN |
| Pad Shims Included | No |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | Yes |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 00829352405345 |
RAYBESTOS ATD225M Cross References
| Brand | Part Number |
|---|---|
| 829352405345, SP225TRH | |
| ABEX | SD225 |
| American Remanufactured | 64-D225, 64-D225A |
| Autospecialty | 26-225-01 |
| Autoxtra | SMD225 |
| Bendix | MKD225, MKD225FE |
| Bosch | BHD225 |
| CENTRIC | 106.02250 |
| Centric Parts | 102.02250, 104.02250, 106.02250, 300.02250 |
| Certified Division | D100225 |
| Delphi | CL411 |
| EIS Brakes | DM225, MX225 |
| Euclid | E-D225SHD |
| FRITEC | 7808-Z |
| Formula Blue Hydraulic Brake Parts | E10702250, E10902250, E11102250 |
| General Motors | 12474647, 12541172, 12544299, 12547536, 15514582, 15532027, 15625708 |
| Guardian | 65-225, 65-225A, 65-225B |
| International Harvester (IHC) | 593691C91, 990953C91, 990953C93 |
| Inwood Automotive Products | DMX225, TXD225 |
| Kem | PXD225 |
| MAGMA PRODUCTS | PSD225M |
| Monroe Brakes | DX225 |
| Morse | MKD225HD |
| Performance Friction | 0225.10, 0225.20, 0225.30, 2254, 225SM, 225Z |
| PowerStop | Z36-225 |
| Satisfied | FL225 |
| WAGNER | SX225 |
| Wagner Brake | FD225, MD225, MX225, MX225A, MX225B, MX7142, MX7818, MX7819, MXF7142, SX225, SX225A, SX225B, SX7142, ZX1418 |
| Western Brakes | WSD225 |
RAYBESTOS ATD225M Fits Vehicles
- Freightliner MB Line (1995-2006)
- International 3000RE (1996-1997)
- International 4600UH (1990)
- Freightliner FS65 (1996-1998)
- Peterbilt 330 (1995-1999)
- International 1654 (1981, 1983-1989)
- International F1924 (1979-1981)
- International 2155 (1979-1989)
- International 1955 (1979-1989)
- International 1954 (1979-1989)
- International 1925 S (1979-1982)
- International 1924 S (1979-1982)
- International 1854 (1979-1989)
- International 1724 (1979-1985)
- International 1824 (1979-1984)
- International 1754 (1979-1989)
- Peterbilt 200 (1994-2000)
- Freightliner MT55 (1999-2003)
- Freightliner FL70 (1991-2005)
- Freightliner FL60 (1991-2005)
- International 2375 S (1983-1989)
- Mack MS300T Mid-Liner (1986-1996)
- Mack MS300P Mid-Liner (1986-2001)
- Mack MS250P Mid-Liner (1986-2001)
- Mack MS200P Mid-Liner (1980-1982, 1984-2001)
- Mack CS200P Mid-Liner (1986-2001)
- International S1955 (1981, 1983-1989)
- International S1954 (1981-1989)
- International S1924 (1980-1982)
- International S1853 (1981-1989)
- International S1824 (1980)
- International S1823 (1980-1982)
- International S1754 (1981-1989)
- International S1753 (1984-1989)
- International S1724 (1980-1984)
- International S1723 (1980-1985)
- International S1624 (1980-1982)
- International 7100 (1990-1995)
- International 4900 (1990-1997)
- International 4800 (1990-1997)
- International 4700LPX (1995-1997)
- International 4700LP (1990-1997)
- International 4700 (1990-1997)
- International 4600LP (1990-1994)
- International 4600 (1990-1995)
- International 3900FC (1991-1994, 1996)
- International 3800 (1990-1997)
- International 3700 (1990-1994)
- International 3600 (1992-1998)
- International 3400 (1996-1998)
- International 3000FE (1997-1998)
- International M1600 Metro II (1987-1989)
- International M1400 Metro II (1987-1989)
- International 1652SC (1986-1998)
- International 1452SC (1987-1992)
- Kenworth T300 (1998-1999)
- Kenworth K300 (1994-2000)
- Freightliner MB70 (1992-1995)
- Freightliner MB60 (1992-1995)
- Freightliner FL50 (1995-2005)
- International 3000 (1996-1997)
- International Cargostar (1980-1985)
- Sterling Truck Acterra (2003-2008)
- Blue Bird TC1000 (1997-2000)
- Blue Bird TC2000 (1989-2004)
- Isuzu FVR (1996-2002)
- Isuzu FTR (1996-2002)
- Isuzu FSR (1996-2002)
- GMC P6500 (1992-1996)
- Chevrolet P6000 (1992-1996)
- Sterling Truck Acterra 7500 (2001-2007)
- Sterling Truck Acterra 6500 (2001-2007)
- Sterling Truck Acterra 5500 (2001-2007)
- GMC T7500 (1997-2002)
- GMC T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- GMC B7 (1993-2002)
- GMC B6000 (1980-1991)
- GMC C7500 Topkick (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet B7 (1993-2002)
- Chevrolet B60 (1980-1991)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- GMC C5000 Topkick (1990-1991)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
- GMC C5000 (1983-1990)
- GMC C7000 (1983-1990)
- GMC C6000 (1983-1990)
- Chevrolet C60 (1983-1990)
- Chevrolet C70 (1983-1990)
- Chevrolet C50 (1983-1990)
