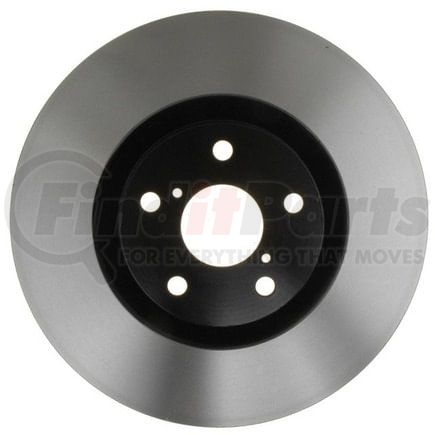

RAYBESTOS 980730 Raybestos Specialty - Street Performance Brake Rotor

$141.99

Limited availability at this price!

1 Day Lead Time

Get it by Thursday, Mar 5
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
This item will ship about 1 day after the date of purchase

RAYBESTOS 980730 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2011-2009 Lexus GS350 Front Right, 2011-2009 Lexus IS350 Front Right, 2011-2009 Lexus GS450h Front Right, 2011-2009 Lexus GS460 Front Right

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980730 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.443 IN
Center Hole Diameter 62.05 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.102 IN
Discard Thickness 28 MM
Harmonize Code 8708.30.5030
Inside Diameter 8.574 IN
Inside Diameter 217.8 MM
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 4.5 IN
Mounting Bolt Hole Diameter 114.3 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.182 IN
Nominal Thickness 30 MM
Outside Diameter 13.148 IN
Outside Diameter 333.95 MM
Overall Height 2.005 IN
Overall Height 50.95 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Diameter 4.5 IN
Stud/Lug Hole Diameter 114.3 MM
Stud/Lug Hole Quantity 5
Surface Type Smooth
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352744192

RAYBESTOS 980730 Cross References

BrandPart Number
ECH-8693, 829352744192
ADVANCE AUTO PARTSYH275048, YH275048C, YH275048P
AUTOZONE44666, 44666DG
BOSCH50011483
BRAKEBEST980730, 980730RGS
CENTRIC120.44171, 121.44171, 125.44171, 126.44171CSR, 126.44171SR, 127.44171R, 128.44171CR, 128.44171R
Centric Parts121.44171, 125.44171, 120.44171, 126.44171CSR, 126.44171SR, 127.44171R, 128.44171CR, 128.44171R
DURA CORPBR31534
DuraGo901010, BR901010, BR31534
Dynamic Friction Company604-75028D
NEOTEK1063059GF
NEWTEK AUTOMOTIVE31534
Newtek Automotive USA31534
POWERSTOPJBR1393EVC
PROMAX14-31534
Qualis44666
TOYOTA4351230340
WAGNER BRAKEBD180327
WINHERE6621089

RAYBESTOS 980730 Fits Vehicles

  • Lexus GS460 (2009-2011)
  • Lexus GS350 (2009-2011)
  • Lexus GS450h (2009-2011)
  • Lexus IS350 (2009-2011)
