RAYBESTOS 96788 Part Description
Manufacturer
Product Description

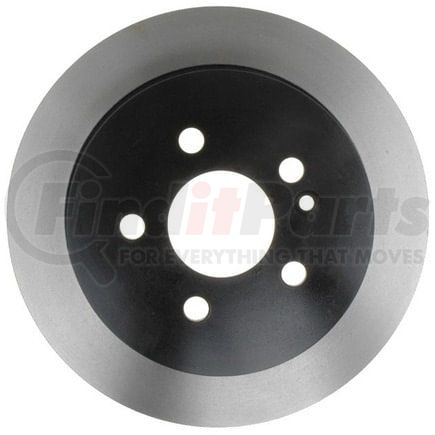

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2003-1998 Mercedes-Benz ML320 Rear, 2005-2003 Mercedes-Benz ML350 Rear, 1999 Mercedes-Benz ML430 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96788 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.512 IN |
| Discard Thickness | 13 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.587 IN |
| Nominal Thickness | 14.9 MM |
| Outside Diameter | 11.22 IN |
| Outside Diameter | 285 MM |
| Overall Height | 2.189 IN |
| Overall Height | 55.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730318561 |
RAYBESTOS 96788 Cross References
RAYBESTOS 96788 Fits Vehicles
- Mercedes-Benz ML430 (1998-1999)
- Mercedes-Benz ML350 (2003-2005)
- Mercedes-Benz ML320 (1998-2003)
