(888) 312-8812 Login SignupRAYBESTOS 980628R Raybestos R-Line Brake Rotor
$12549
Limited availability at this price!
In Stock
Get it by Thursday, Feb 26
RAYBESTOS 980628R Part Description
Manufacturer
Product Description

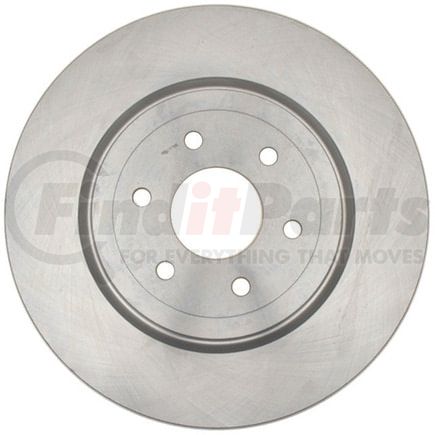

Raybestos R-Line Brake Rotor
Application Summary
2012-2008 Nissan Pathfinder Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980628R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.189 IN |
| Inside Diameter | 208 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.502 IN |
| Overall Height | 38.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352635506 |
RAYBESTOS 980628R Cross References
| Brand | Part Number |
|---|---|
| CM141900, 829352635506 | |
| ADVANCE AUTO PARTS | YH248694, YH248694C |
| AUTOXTRA | AX900708 |
| AUTOZONE | 44593DG, 44616DG, 44616 |
| BENDIX | PRT5807 |
| BOSCH | 40011479, 40011066 |
| BRAKEBEST | 40011066, 40011479, 980628R, 980628RGS, 980628, 980628FZN |
| CENTRIC | 120.42102, 121.42102, 126.42102CSL, 126.42102CSR, 126.42102SL, 126.42102SR, 127.42102L, 127.42102R |
| Casting Numbers | 326399 |
| Centric Parts | 120.42102, 121.42102, 126.42102CSL, 126.42102CSR, 126.42102SL, 126.42102SR, 127.42102L, 127.42102R |
| DATSUN/NISSAN | 402069CE0B, 40206ZS60A |
| DURA CORP | BR31504, BR900708 |
| DuraGo | 900708, BR900708 |
| Dynamic Friction Company | 604-67099 |
| MAGMA PRODUCTS | PMR425112 |
| NAPA BRAKES | SDK6015 |
| NEWTEK AUTOMOTIVE | 31504 |
| Newtek Automotive USA | 31504 |
| Nissan | 402069CE0B, 40206ZS60A |
| PROMAX | 14-31504 |
| Qualis | 44616 |
| UAP | 31504 |
| WAGNER BRAKE | BD126586 |
| WINHERE | 6620956 |
RAYBESTOS 980628R Fits Vehicles
- Nissan Pathfinder (2008-2012)
