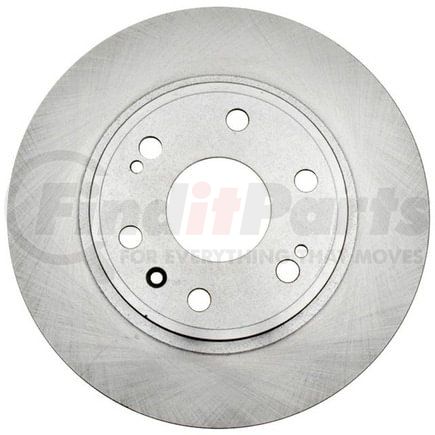

(888) 312-8812 Login SignupRAYBESTOS 580721R DISC BRK ROTOR
$9399
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
RAYBESTOS 580721R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2020-2009 Chevrolet Tahoe Front, 2018-2009 GMC Yukon Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580721R Specifications
Product Attributes
| Center Hole Diameter | 3.09 IN |
| Center Hole Diameter | 78.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.555 IN |
| Inside Diameter | 217.3 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.991 IN |
| Outside Diameter | 329.95 MM |
| Overall Height | 2.19 IN |
| Overall Height | 55.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352692295 |
RAYBESTOS 580721R Cross References
| Brand | Part Number |
|---|---|
| DYN-6326, 829352692295 | |
| ADVANCE AUTO PARTS | 290676, YH145582, YH290676, YH290676C, YH290676P |
| BENDIX | PRT5903 |
| BOSCH | 25010621, 25011469 |
| BRAKEBEST | 25010621, 25011469, 521710RGS, 580721, 580721FZN, 580721R, 580721RGS |
| CENTRIC | 120.66057 |
| Centric Parts | 120.62180, 121.62180 |
| DURA CORP | BR55170 |
| Dynamic Friction Company | 604-47079 |
| GM | 22950037, 23144341, 25928787 |
| General Motors | 22950037, 23144341, 25928787 |
| MAGMA PRODUCTS | PMR225253 |
| NEWTEK AUTOMOTIVE | 55170 |
| Newtek Automotive USA | 55170 |
| PROMAX | 14-55170 |
| TopNotch | TN580721GEO |
| WINHERE | 6621026 |
| WORLDPAC | 1407-290676 |
| Wagner Brake | BD180812E |
RAYBESTOS 580721R Fits Vehicles
- GMC Yukon (2009-2018)
- Chevrolet Tahoe (2009-2020)
RAYBESTOS 580721R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 580721R Questions & Answers
No questions yet
Be the first to ask a question about this product!
