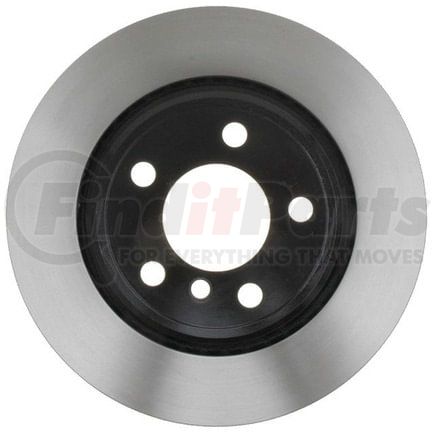

RAYBESTOS 980119 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2006-2002 BMW X5 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980119 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 12.756 IN |
| Outside Diameter | 324 MM |
| Overall Height | 3.154 IN |
| Overall Height | 80.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352623824 |
RAYBESTOS 980119 Cross References
| Brand | Part Number |
|---|---|
| 829352623824, 120.34061 | |
| ADVANCE AUTO PARTS | YH200891, YH200891C, YH200891P |
| ATE BRAKE PRODUCTS | 420191, SP20191 |
| AUTOZONE | 73005, 73005DG |
| BMW | 34216756849 |
| BRAKEBEST | 980119, 980119FZN, 980119R, 980119RGS |
| BREMBO | 09.A541.11 |
| CENTRIC | 120.34061, 121.34061, 125.34061, 126.34061CSL, 126.34061CSR, 126.34061SL, 126.34061SR, 127.34061L, 127.34061R, 128.34061CL, 128.34061CR, 128.34061L, 128.34061R |
| Centric Parts | 120.34061, 121.34061, 125.34061, 126.34061CSL, 126.34061CSR, 126.34061SL, 126.34061SR, 127.34061L, 127.34061R, 128.34061CL, 128.34061CR, 128.34061L, 128.34061R |
| DURA CORP | BR34376, BR900740 |
| DuraGo | 900740, BR900740 |
| NEOTEK | 106699GF |
| NEWTEK AUTOMOTIVE | 34376 |
| Newtek Automotive USA | 34376 |
| PAGID | 355112702 |
| PAGID Racing | 355112702 |
| POWERSTOP | EBR668EVC |
| PROMAX | 14-34376 |
| PRONTO | BR900740 |
| Qualis | 45448 |
| TRW | 4299 |
| UAP | 34376 |
| VAICO | V2080074 |
| WABCO | PS900740 |
| WABCO - Archived | PS900740 |
| WAGNER | BD126488 |
| WAGNER BRAKE | BD126488 |
| WINHERE | 6620333 |
| WORLDPAC | 1427-719548 |
RAYBESTOS 980119 Fits Vehicles
- BMW X5 (2002-2006)
