(888) 312-8812 Login SignupRAYBESTOS 96714 Raybestos Specialty - Street Performance Brake Rotor
$3599
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Mar 13
RAYBESTOS 96714 Part Description
Manufacturer
Product Description

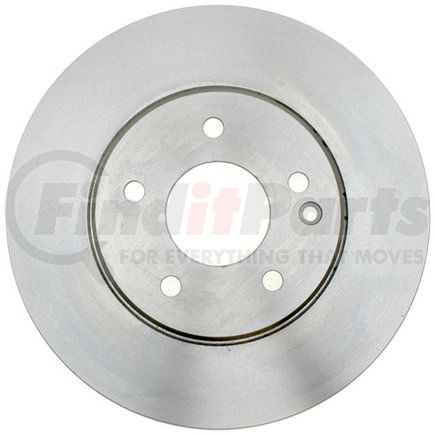

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1998-1997 Mercedes-Benz C230 Front, 1996-1994 Mercedes-Benz C220 Front, 1995-1994 Mercedes-Benz C280 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96714 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.764 IN |
| Discard Thickness | 19.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.86 IN |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 11.18 IN |
| Outside Diameter | 283.95 MM |
| Overall Height | 1.71 IN |
| Overall Height | 43.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730228228 |
RAYBESTOS 96714 Cross References
| Brand | Part Number |
|---|---|
| 747730228228, 120.33043 | |
| ADVANCE AUTO PARTS | 145119, YH145119, YH145119C |
| ALTROM IMPORTS | 2024210912 |
| ATE BRAKE PRODUCTS | 422132, SP22132 |
| AUTOPART INTERNATIONAL | 78105 |
| AUTOSPECIALTY | EBR452, EBR452E |
| AUTOXTRA | AX34091 |
| AUTOZONE | 34091, 34091DG |
| BECK/ARNLEY | 083-2627 |
| BENDIX | 145119 |
| BRAKE HEADQUARTERS | BR07271 |
| BRAKEBEST | 36010935, 96714, 96714R, 96714RGS, BD125443 |
| BREMBO | 09.4869.40, 25251, 09.4869.41 |
| CALIFORNIA DRUM & ROTOR | 125443 |
| CENTRIC | 120.33043, 121.33043, 125.33043, 126.33043CSL, 126.33043CSR, 126.33043SL, 126.33043SR, 127.33043L, 127.33043R, 128.33043L, 128.33043R |
| CONTINENTAL-CONTITECH | CW12128, CW22132 |
| Casting Numbers | 210997-C, 325887 |
| Centric Parts | 120.33043, 121.33043, 125.33043, 126.33043CSL, 126.33043CSR, 126.33043SL, 126.33043SR, 127.33043L, 127.33043R, 128.33043L, 128.33043R |
| DELPHI | RB336 |
| DURA CORP | BR34091 |
| DuraGo | BR34091 |
| EUROROTOR | ME178 |
| GREN | 432002 |
| MERCEDES-BENZ | 2024210912 |
| MIDAS | BR2088 |
| MIGHTY DISTRIBUTING SYSTEM | 34091 |
| MONROE BRAKES | BD125443 |
| NEWTEK AUTOMOTIVE | 34091 |
| Newtek Automotive USA | 34091 |
| PILENGA | V195 |
| PROMAX | 14-34091 |
| PRONTO | BR34091 |
| QUALIS | 34091 |
| QUALITEE INTERNATIONAL | 64-13-310 |
| QUALITY BRAND | 34091, Q165 |
| QUINTON HAZELL | BDC3839 |
| STANDARD ROTORS AND DRUMS | 34091 |
| THE UNIVERSAL GROUP | 110090 |
| TRUSTAR | 413310, R13310 |
| TRW | 2656, DF2656S |
| UAP | 34091 |
| Universal | 110090 |
| VAICO | V3080020 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51039 |
| WAGNER | BD125443 |
| WAGNER BRAKE | BD125443 |
| WINHERE | 442010, YH2010 |
RAYBESTOS 96714 Fits Vehicles
- Mercedes-Benz C280 (1994-1995)
- Mercedes-Benz C220 (1994-1996)
- Mercedes-Benz C230 (1997-1998)
